| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,846 pcs
|
1846 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,846 pcs
|
1846 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
757 pcs
|
757 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |
This Yageo RC0603FR-071K2L is a surface mount chip resistor from the RC_L series. It features a thick film composition and a resistance value of 1.2 kΩ with a tight tolerance of ±1%. The power rating is 0.1W (1/10W), suitable for general-purpose applications.

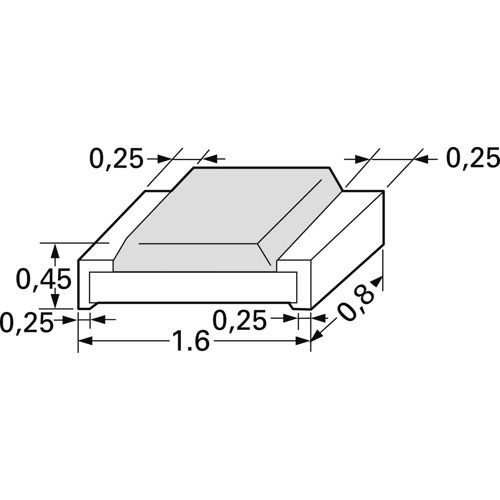

The resistor is housed in a compact 0603 (1608 metric) package, measuring 1.60mm in length and 0.80mm in width. It has a height of 0.55mm and two terminations. The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.
This component is designed for surface mounting and is moisture resistant, with an MSL rating of 1. It meets RoHS3 compliance and is Halogen Free, making it suitable for environmentally conscious designs. The standard package quantity is 10,000 units on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.2 kΩ.
The tolerance is ±1%.
The power rating is 0.1W (1/10W).
The package size is 0603 (1608 metric).
The operating temperature range is -55°C to 155°C.
Yes, it is RoHS3 compliant.
Yes, it is Halogen Free.
