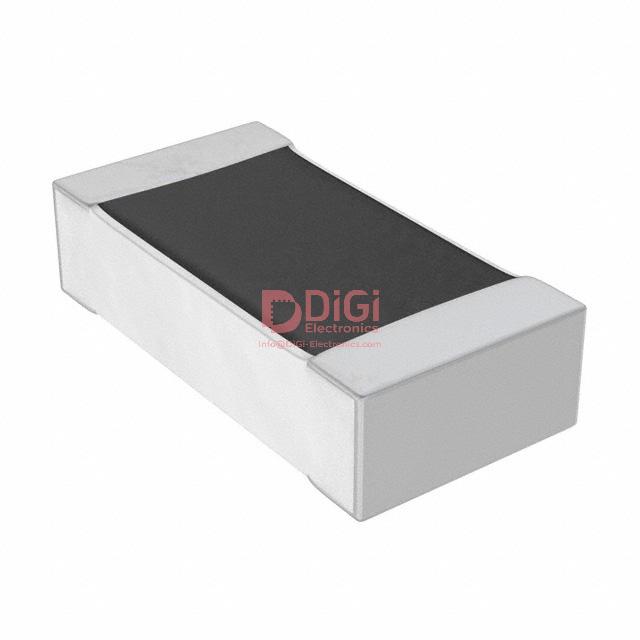

RC0603FR-07169KL The Yageo RC0603FR-07169KL is a surface mount chip resistor with a resistance of 169 kOhms and a tolerance of ±1%. It is rated for 0.1W power.
Mfr Part #:

RC0603FR-07169KL

Available from 4 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-07169KL is a surface mount chip resistor with a resistance of 169 kOhms and a tolerance of ±1%. It is rated for 0.1W power.
✓ Total Stock: 35,487 pcs
$ Price Range: $0.02

RC0603FR-07169KL Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-07169KL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-07169KL Description

Short technical summary and product information.

This Yageo RC0603FR-07169KL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 169 kOhms with a tight tolerance of ±1%, ensuring precise circuit performance.



The resistor is rated for a power of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C. Its thick film composition contributes to its reliability.



Packaged in a compact 0603 (1608 Metric) case, this component is suitable for space-constrained designs. It has a height of 0.55mm, a length of 1.60mm, and a width of 0.80mm. The component has two terminations and is moisture resistant.



Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL 1 rating, suitable for standard manufacturing processes.

RC0603FR-07169KL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-07169KL Chip Resistor
Subcategory: Surface Mount

RC0603FR-07169KL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-07169KL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-07169KL Features

  • 169 kOhms resistance with ±1% tolerance.
  • 0.1W power rating at 0.1W.
  • Wide operating temperature range -55°C to 155°C.
  • Compact 0603 (1608 Metric) surface mount package.
  • Thick film composition for reliability.

RC0603FR-07169KL Applications

  • Suitable for precision resistor networks in circuits.
  • Used in automotive electronic control units.
  • Ideal for high-temperature industrial applications.
  • Applied in signal conditioning and filtering circuits.
  • Utilized in power management and voltage regulation.

RC0603FR-07169KL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-07169KL?

The resistance value is 169 kOhms.

What is the tolerance of the Yageo RC0603FR-07169KL resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-07169KL?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What is the package size of the RC0603FR-07169KL?

The package size is 0603 (1608 Metric).

Is the Yageo RC0603FR-07169KL RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
