| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,665 pcs
|
30665 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30,459 pcs
|
30459 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

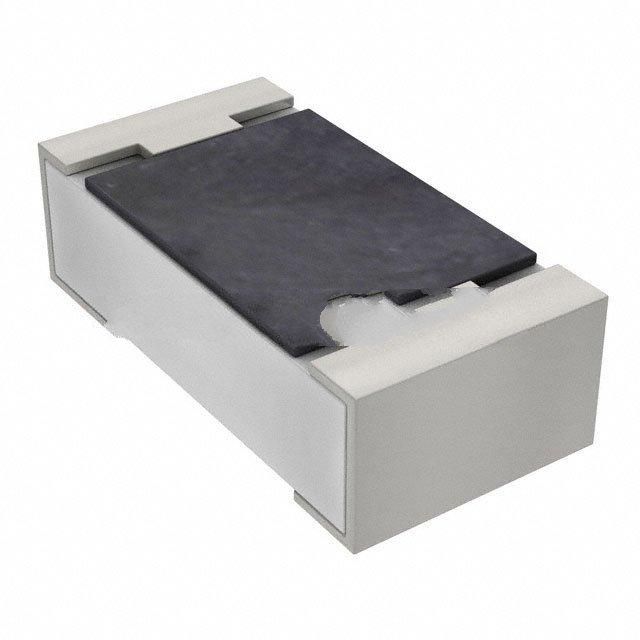

This Yageo RC0603FR-07160KL is a thick film chip resistor designed for general-purpose applications. It offers a resistance value of 160 kΩ with a tight tolerance of ±1%. The component is rated for 1/10W of power and has a temperature coefficient of ±100ppm/°C, ensuring stable performance across a range of operating temperatures from -55°C to 155°C.
The resistor is housed in a compact 0603 (1608 Metric) surface mount package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. Its construction utilizes thick film technology, and it is designed with two terminations. The component is noted for being moisture resistant and complies with RoHS3 standards, indicating it is lead and halogen-free.
This part is suitable for various electronic circuits where precise resistance values and reliable performance are required in a small form factor. Its surface mount design facilitates automated assembly processes on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 160 kΩ.
The tolerance is ±1%.
The power rating is 0.1W or 1/10W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The package size is 0603 (1608 Metric).
Yes, it is RoHS3 Compliant.
