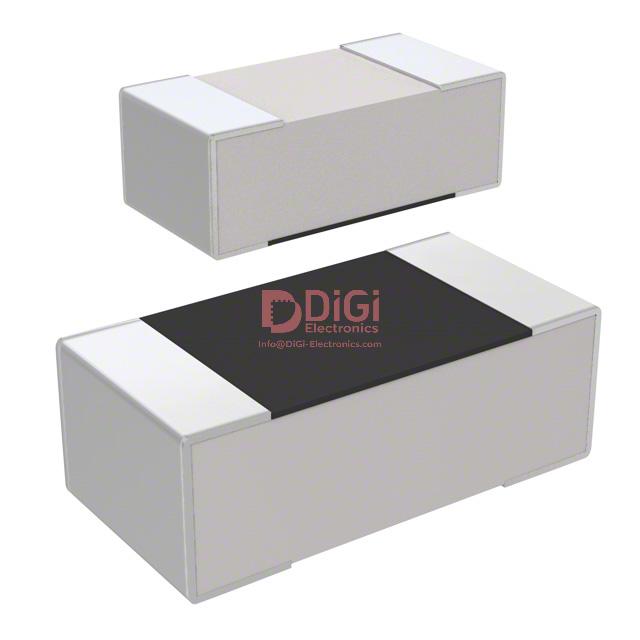

RC0603FR-07105KL The Yageo RC0603FR-07105KL is a surface mount chip resistor with a resistance of 105 kΩ and a tolerance of ±1%. It has a power rating of 0.1W.
Mfr Part #:

RC0603FR-07105KL

Available from 6 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-07105KL is a surface mount chip resistor with a resistance of 105 kΩ and a tolerance of ±1%. It has a power rating of 0.1W.
✓ Total Stock: 55,931 pcs
$ Price Range: $0.02

RC0603FR-07105KL Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-07105KL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-07105KL Description

Short technical summary and product information.

This Yageo RC0603FR-07105KL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 105 kΩ with a tight tolerance of ±1%, ensuring accurate circuit performance.



The resistor is rated for 0.1W (1/10W) of power and operates within a temperature range of -55°C to 155°C. Its thick film composition and moisture-resistant feature contribute to its reliability.



Packaged in a compact 0603 (1608 Metric) case, this component is suitable for space-constrained designs. It has a height of 0.55mm, length of 1.60mm, and width of 0.80mm. The component has 2 terminations.



Environmental compliance includes RoHS3 compliance and Halogen Free status, making it suitable for various modern electronic manufacturing processes.

RC0603FR-07105KL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: Yageo RC0603FR-07105KL Chip Resistor
Subcategory: Surface Mount

RC0603FR-07105KL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-07105KL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-07105KL Features

  • 105 kΩ resistance with ±1% tolerance.
  • 0.1W power rating suitable for general use.
  • Compact 0603 (1608 Metric) surface mount package.
  • Operates from -55°C to 155°C.
  • Moisture resistant and Halogen Free.

RC0603FR-07105KL Applications

  • Used in signal filtering circuits
  • Suitable for voltage divider networks
  • Ideal for compact electronic devices
  • Applied in high-density PCB assemblies

RC0603FR-07105KL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-07105KL resistor?

The resistance value is 105 kΩ.

What is the tolerance of the Yageo RC0603FR-07105KL chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-07105KL?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0603FR-07105KL resistor in?

The resistor is in a 0603 (1608 Metric) package.

Is the Yageo RC0603FR-07105KL Halogen Free?

Yes, this component is Halogen Free.
