| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 2223 | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

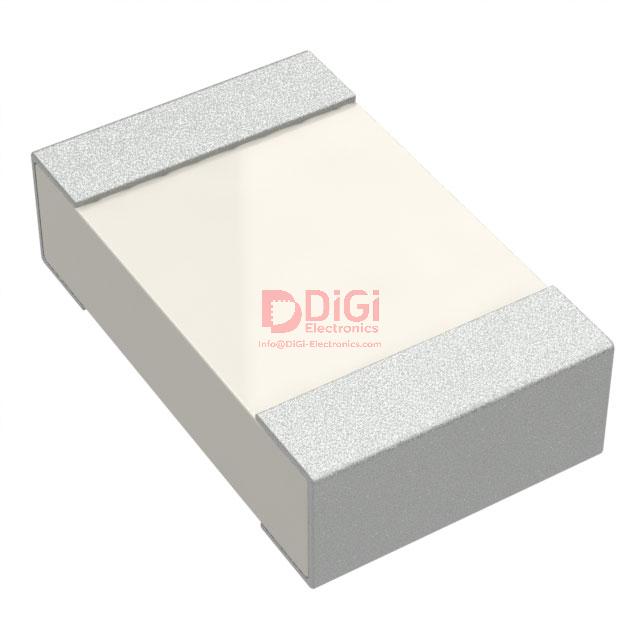

This Yageo RC0402JR-0756RL is a surface mount chip resistor from the RC_L series. It offers a resistance value of 56 Ohms with a tight tolerance of ±5%. The component is rated for a power of 0.063W (1/16W) and has a temperature coefficient of ±100ppm/°C.
The resistor operates within a temperature range of -55°C to 155°C. Its compact 0402 (1005 Metric) package measures 1.00mm in length and 0.50mm in width, with a height of 0.40mm. The composition is thick film, and it features moisture resistance.
Designed for general-purpose applications, this chip resistor is suitable for various electronic circuits where space is a consideration. Its surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 56 Ohms.
The tolerance is ±5%.
The power rating is 0.063W, or 1/16W.
The operating temperature range is -55°C to 155°C.
The resistor has dimensions of 1.00mm (Length) x 0.50mm (Width) x 0.40mm (Height).
The package type is 0402 (1005 Metric) for surface mounting.
