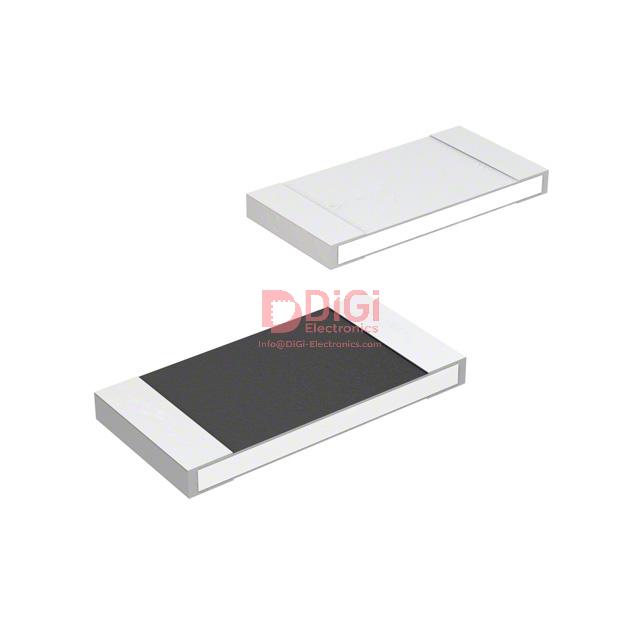

RC0402JR-07300RL The Yageo RC0402JR-07300RL is a surface mount chip resistor with a resistance of 300 Ohms and a tolerance of ±5%. It has a power rating of 1/16W and is housed in a 0402 package.
Mfr Part #:

RC0402JR-07300RL

Available from 3 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0402JR-07300RL is a surface mount chip resistor with a resistance of 300 Ohms and a tolerance of ±5%. It has a power rating of 1/16W and is housed in a 0402 package.
✓ Total Stock: 27,548 pcs
$ Price Range: $0.02

RC0402JR-07300RL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
9,274 pcs
On Request
9274 pcs On Request 1 On Request On Request 1615 On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
9,137 pcs
On Request
9137 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9,137 pcs
On Request
9137 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0402JR-07300RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0402JR-07300RL Description

Short technical summary and product information.

This Yageo chip resistor, part number RC0402JR-07300RL, is designed for general-purpose applications. It features a resistance value of 300 Ohms with a tight tolerance of ±5%, ensuring reliable performance in various circuits.



The component is rated for 1/16W of power and operates within a temperature range of -55°C to 155°C. Its thick film composition and 0402 package size make it suitable for surface mount technology (SMT) applications where space is a consideration.



The resistor has a temperature coefficient of ±100ppm/°C and a moisture resistance feature. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. The REACH status is unaffected.



Key specifications include a package size of 0402 (1005 Metric), dimensions of 1.00mm x 0.50mm, and a height of 0.40mm. It has 2 terminations and is supplied in an embossed taping reel.

RC0402JR-07300RL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: Yageo RC0402JR-07300RL Chip Resistor, 300 Ohm, ±5% Tolerance, 1/16W
Subcategory: Chip Resistor

RC0402JR-07300RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0402JR-07300RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402JR-07300RL Features

  • 300 Ohms resistance with ±5% tolerance.
  • Rated for 1/16W power.
  • 0402 package size for SMT.
  • Operates from -55°C to 155°C.
  • RoHS3 compliant and MSL 1 rated.

RC0402JR-07300RL Applications

  • Suitable for general purpose applications.
  • Ideal for SMT circuit designs.
  • Used in temperature-sensitive circuits.
  • Component for space-constrained designs.

RC0402JR-07300RL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0402JR-07300RL?

The resistance value is 300 Ohms.

What is the tolerance of the Yageo RC0402JR-07300RL resistor?

The tolerance is ±5%.

What is the power rating for the RC0402JR-07300RL?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What is the package size of the RC0402JR-07300RL?

The package size is 0402 (1005 Metric).

What is the temperature coefficient of this resistor?

The temperature coefficient is ±100ppm/°C.

Is the Yageo RC0402JR-07300RL RoHS compliant?

Yes, it is RoHS3 Compliant.
