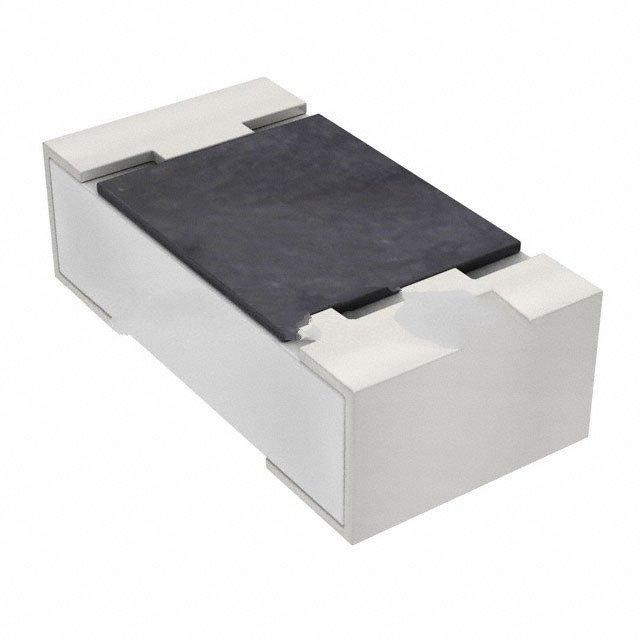

RC0402FR-0782K5L This Yageo RC0402FR-0782K5L is a thick film chip resistor with a resistance value of 82.5 kΩ and a tolerance of ±1%. It is designed for surface mount applications.
Mfr Part #:

RC0402FR-0782K5L

Available from 5 distributors
Mfr Name: Yageo
Yageo
This Yageo RC0402FR-0782K5L is a thick film chip resistor with a resistance value of 82.5 kΩ and a tolerance of ±1%. It is designed for surface mount applications.
✓ Total Stock: 35,433 pcs
$ Price Range: $0.02

RC0402FR-0782K5L Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0402FR-0782K5L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0402FR-0782K5L Description

Short technical summary and product information.

The Yageo RC0402FR-0782K5L is a surface mount chip resistor from the RC_L series. It features a thick film composition and a resistance value of 82.5 kΩ with a tight tolerance of ±1%. The power rating is 1/16W (0.063W), and it has a temperature coefficient of ±100ppm/°C.



This component is housed in a 0402 (1005 Metric) package, measuring 1.00mm in length, 0.50mm in width, and 0.40mm in height. It operates within a temperature range of -55°C to 155°C and has 2 terminations. The resistor is also noted for being moisture resistant.



Designed for general-purpose applications, this chip resistor meets RoHS3 compliance and has an MSL rating of 1. Its compact size and reliable performance make it suitable for various electronic circuits where space is a consideration.

RC0402FR-0782K5L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0402FR-0782K5L Thick Film Chip Resistor 82.5 kΩ ±1% 1/16W ±100ppm/°C 0402
Subcategory: Chip Resistor - Surface Mount

RC0402FR-0782K5L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0402FR-0782K5L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402FR-0782K5L Features

  • Thick film chip resistor for surface mounting.
  • 82.5 kΩ resistance with ±1% tolerance.
  • 1/16W power rating at specified conditions.
  • ±100ppm/°C temperature coefficient.
  • Compact 0402 package size.

RC0402FR-0782K5L Applications

  • Suitable for precision resistor networks in circuits.
  • Used in temperature-sensitive electronic applications.
  • Ideal for surface-mount resistor replacements.
  • Suitable for moisture-resistant electronic assemblies.
  • Applicable in high-reliability industrial equipment.

RC0402FR-0782K5L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Yageo RC0402FR-0782K5L?

The resistance value is 82.5 kΩ.

What is the tolerance of the RC0402FR-0782K5L resistor?

The tolerance is ±1%.

What is the power rating for the Yageo RC0402FR-0782K5L?

The power rating is 0.063W, or 1/16W.

What is the temperature coefficient of this chip resistor?

The temperature coefficient is ±100ppm/°C.

What are the dimensions of the Yageo RC0402FR-0782K5L resistor?

The resistor has dimensions of 1.00mm (length) x 0.50mm (width) x 0.40mm (height).

What is the operating temperature range for the RC0402FR-0782K5L?

The operating temperature range is -55°C to 155°C.

What is the package type for the Yageo RC0402FR-0782K5L?

The package type is 0402 (1005 Metric).
