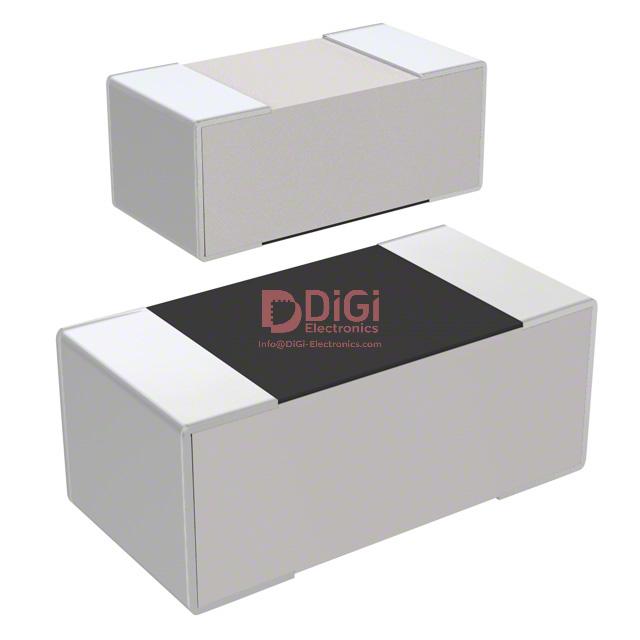

RC0402FR-0748K7L The Yageo RC0402FR-0748K7L is a surface mount chip resistor with a resistance of 48.7 kOhms and a tolerance of ±1%. It is rated for 1/16W power.
Mfr Part #:

RC0402FR-0748K7L

Available from 6 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0402FR-0748K7L is a surface mount chip resistor with a resistance of 48.7 kOhms and a tolerance of ±1%. It is rated for 1/16W power.
✓ Total Stock: 50,869 pcs
$ Price Range: $0.02

RC0402FR-0748K7L Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0402FR-0748K7L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0402FR-0748K7L Description

Short technical summary and product information.

This Yageo RC0402FR-0748K7L is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 48.7 kOhms with a tight tolerance of ±1%, ensuring precise circuit performance.



The resistor is rated for a power of 0.063W (1/16W) and operates within a temperature range of -55°C to 155°C. Its thick film composition contributes to its reliability.



Packaged in an industry-standard 0402 (1005 Metric) case, this component is suitable for automated assembly processes. The dimensions are 1.00mm in length and 0.50mm in width, with a height of 0.40mm. It has two terminations and is designed for surface mounting.



This component is also noted for its moisture-resistant feature and complies with RoHS3 standards. It is suitable for applications requiring high component and equipment reliability while saving PCB space.

RC0402FR-0748K7L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0402FR-0748K7L Chip Resistor
Subcategory: Surface Mount

RC0402FR-0748K7L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0402FR-0748K7L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402FR-0748K7L Features

  • 48.7 kOhms resistance with ±1% tolerance.
  • Rated for 1/16W power at specified temperatures.
  • Operates from -55°C to 155°C.
  • Compact 0402 (1005 Metric) surface mount package.
  • RoHS3 compliant and moisture resistant.

RC0402FR-0748K7L Applications

  • Suitable for general purpose applications.
  • Ideal for automated PCB assembly.
  • Used in circuits requiring precise resistance values.
  • Component for space-saving designs.

RC0402FR-0748K7L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0402FR-0748K7L chip resistor?

The resistance value is 48.7 kOhms.

What is the tolerance of the Yageo RC0402FR-0748K7L resistor?

The tolerance is ±1%.

What is the power rating for the RC0402FR-0748K7L?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0402FR-0748K7L chip resistor?

It comes in an 0402 (1005 Metric) package.
