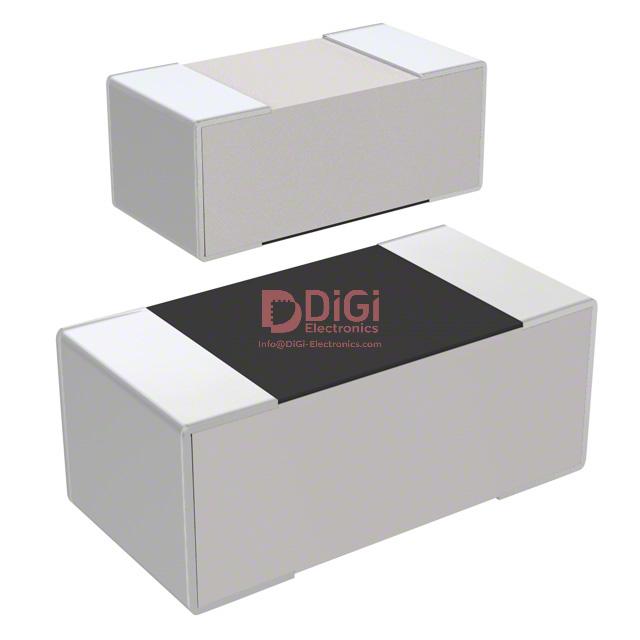

RC0402FR-07402KL The Yageo RC0402FR-07402KL is a surface mount chip resistor with a resistance of 402kΩ and a tolerance of ±1%. It has a power rating of 1/16W and is housed in an 0402 package.
Mfr Part #:

RC0402FR-07402KL

Available from 4 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0402FR-07402KL is a surface mount chip resistor with a resistance of 402kΩ and a tolerance of ±1%. It has a power rating of 1/16W and is housed in an 0402 package.
✓ Total Stock: 4,977 pcs
$ Price Range: $0.02

RC0402FR-07402KL Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0402FR-07402KL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0402FR-07402KL Description

Short technical summary and product information.

This Yageo RC0402FR-07402KL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 402 kΩ with a tight tolerance of ±1%, ensuring precise circuit performance. The resistor is rated for 0.063W (1/16W) of power and operates within a temperature range of -55°C to 155°C.



The component is constructed using a thick film process and is housed in a compact 0402 (1005 Metric) package, making it suitable for space-constrained designs. Its dimensions are 1.00mm in length, 0.50mm in width, and 0.40mm in height. The resistor also features moisture resistance.



This chip resistor is compliant with RoHS3 standards and is Halogen and Lead-free, aligning with environmental regulations. Its MSL rating is 1, indicating unlimited usability under standard conditions.

RC0402FR-07402KL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0402FR-07402KL Chip Resistor
Subcategory: Chip Resistor

RC0402FR-07402KL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

RC0402FR-07402KL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402FR-07402KL Features

  • 402kΩ resistance with ±1% tolerance.
  • Rated for 1/16W power dissipation.
  • Operates from -55°C to 155°C.
  • Compact 0402 (1005 Metric) package.
  • Moisture resistant thick film construction.

RC0402FR-07402KL Applications

  • Suitable for precision resistor networks in circuits.
  • Used in moisture-resistant electronic assemblies.
  • Ideal for surface-mount applications in compact devices.
  • Applicable in high-temperature environments up to 155°C.
  • Suitable for general-purpose electronic circuit design.

RC0402FR-07402KL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0402FR-07402KL resistor?

The resistance value is 402 kΩ.

What is the tolerance of the Yageo RC0402FR-07402KL chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0402FR-07402KL resistor?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0402FR-07402KL resistor supplied in?

It is supplied in an 0402 (1005 Metric) package.

Is the Yageo RC0402FR-07402KL RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
