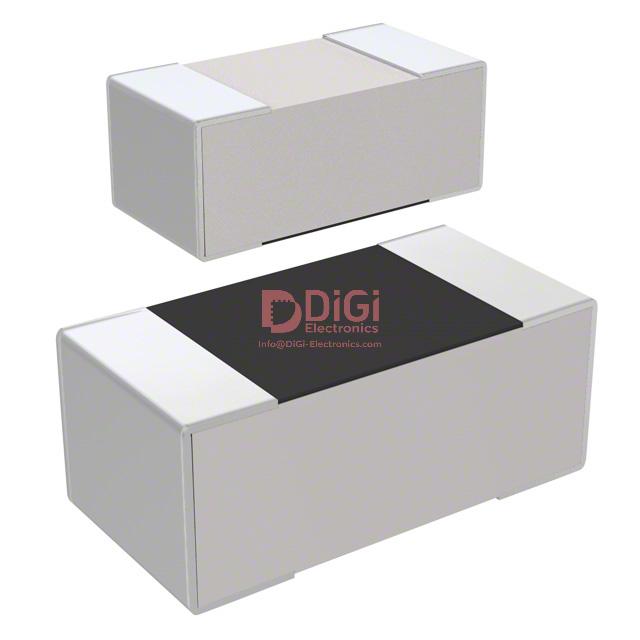

RC0402FR-073K6L The Yageo RC0402FR-073K6L is a surface mount chip resistor with a resistance of 3.6 kΩ and a tolerance of 1%. It has a power rating of 1/16W and comes in an 0402 package.
Mfr Part #:

RC0402FR-073K6L

Available from 4 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0402FR-073K6L is a surface mount chip resistor with a resistance of 3.6 kΩ and a tolerance of 1%. It has a power rating of 1/16W and comes in an 0402 package.
✓ Total Stock: 25,019 pcs
$ Price Range: $0.02

RC0402FR-073K6L Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
9,760 pcs
On Request
9760 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
9,370 pcs
$0.01 ℹ
Qty Price
0+ 0.01
9370 pcs $0.01
QtyPrice
0+ 0.01
1 On Request On Request On Request On Request On Request
Akira Global ✓
Non-Authorised Inventory information
5,834 pcs
On Request
5834 pcs On Request 1 On Request On Request 2144 On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0402FR-073K6L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0402FR-073K6L Description

Short technical summary and product information.

This Yageo RC0402FR-073K6L is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 3.6 kΩ with a tight tolerance of ±1%, ensuring precise circuit performance.



The resistor is rated for 0.063W (1/16W) of power and operates within a temperature range of -55°C to 155°C. Its compact 0402 (1005 Metric) package size makes it suitable for space-constrained designs.



Constructed using thick film technology, this component offers moisture resistance and adheres to RoHS3 compliance standards. The operating temperature coefficient is ±100ppm/°C.



Key specifications include a 2-termination design, a length of 1.00mm, a width of 0.50mm, and a height of 0.40mm. The component is supplied on tape and reel for automated assembly processes.

RC0402FR-073K6L Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: Yageo RC0402FR-073K6L Chip Resistor - Surface Mount
Subcategory: Surface Mount

RC0402FR-073K6L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

RC0402FR-073K6L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402FR-073K6L Features

  • 3.6 kΩ resistance with 1% tolerance.
  • Rated for 1/16W power dissipation.
  • Compact 0402 (1005 Metric) package.
  • Operates from -55°C to 155°C.
  • Moisture resistant thick film construction.

RC0402FR-073K6L Applications

  • Suitable for general purpose electronic circuits.
  • Used in surface mount resistor applications.
  • Ideal for moisture-resistant circuit designs.
  • Applicable in high-temperature thermal environments.
  • Suitable for compact PCB designs with space constraints.

RC0402FR-073K6L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0402FR-073K6L?

The resistance value is 3.6 kΩ.

What is the tolerance of the Yageo RC0402FR-073K6L resistor?

The tolerance is ±1%.

What is the power rating for the RC0402FR-073K6L?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0402FR-073K6L resistor?

The package size is 0402 (1005 Metric).

Is the Yageo RC0402FR-073K6L RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
