| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28,168 pcs
|
28168 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
28,168 pcs
|
28168 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Construction | |
| Dimensions | |
| Features | |
| Halogen Free | |
| Height (Max) | |
| Lead Style | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power Rating | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

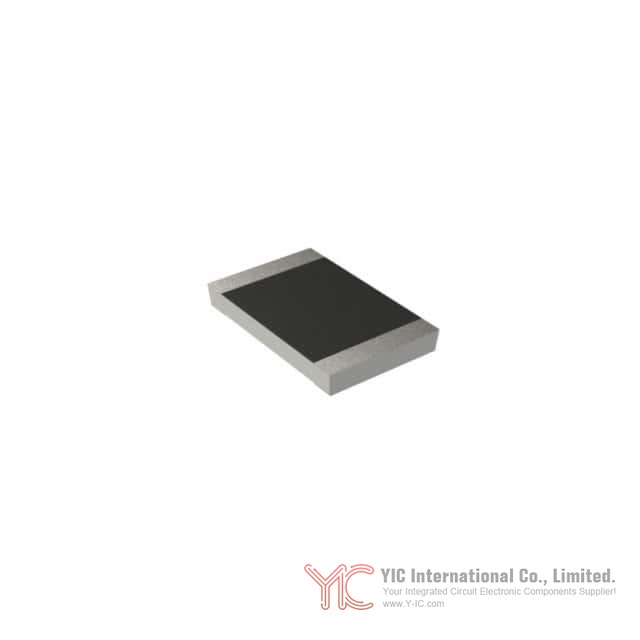

This Yageo RC0402FR-07390R is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 390 Ohms with a tight tolerance of 1%, ensuring precise circuit performance.
The resistor has a power rating of 0.063W (1/16W) and operates within a temperature range of -55°C to 155°C. Its compact 0402 (1005 Metric) package dimensions are 0.039" L x 0.020" W (1.00mm x 0.50mm), with a maximum height of 0.016" (0.40mm).
Constructed with thick film technology, this component is moisture resistant. It features 2 terminations and is supplied on tape and reel for automated assembly processes. The operating temperature coefficient is ±150ppm/°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RC0402FR-07390R has a nominal resistance of 390 Ohms.
The tolerance of the RC0402FR-07390R is ±1%.
The power rating of the RC0402FR-07390R is 0.063W, or 1/16W.
The temperature coefficient of the RC0402FR-07390R is ±150ppm/°C.
The RC0402FR-07390R comes in a 0402 (1005 Metric) surface mount package.
The dimensions of the RC0402FR-07390R are 0.039" L x 0.020" W (1.00mm x 0.50mm), with a maximum height of 0.016" (0.40mm).
The operating temperature range for the RC0402FR-07390R is -55°C to 155°C.
