Mfr Part #:

RC0402FR-072K61L

Mfr Name: Yageo

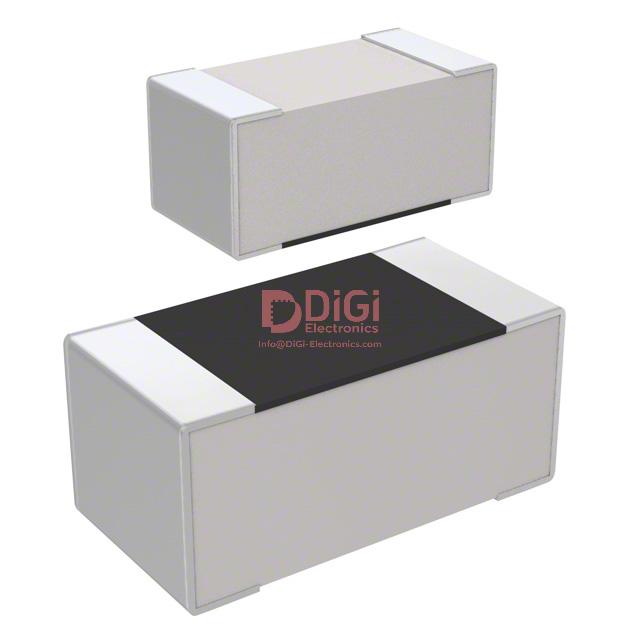

The Yageo RC0402FR-072K61L is a surface mount chip resistor with a resistance of 2.61 kΩ and a tolerance of ±1%. It is rated for 1/16W power.

✓ Total Stock: 24,439 pcs

$ Price Range: $0.02

RC0402FR-072K61L Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	9,870 pcs On Request	9870 pcs	On Request	1	On Request	On Request	1416	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	9,296 pcs On Request	9296 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	5,266 pcs On Request	5266 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Trace Tec ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

RC0402FR-072K61L Description

Short technical summary and product information.

This Yageo chip resistor, part number RC0402FR-072K61L, is designed for surface mount applications. It offers a resistance value of 2.61 kΩ with a tight tolerance of ±1%. The component is rated for a power of 0.063W (1/16W) and operates within a temperature range of -55°C to 155°C.

The resistor features a thick film composition and a standard 0402 (1005 Metric) package size. Its dimensions are 1.00mm in length and 0.50mm in width, with a height of 0.40mm. The component has 2 terminations and is noted for its moisture-resistant properties.

This part is suitable for general-purpose applications where precise resistance values and reliable performance are required. Its surface mount design facilitates automated assembly processes on printed circuit boards.

RC0402FR-072K61L Quick Information

Product Type: Chip Resistor

Series: RC_L

Canonical Name: Yageo RC0402FR-072K61L Chip Resistor

Subcategory: Surface Mount

RC0402FR-072K61L Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RC0402FR-072K61L Estimated Pricing

Qty	Low	High
1+	$0.02	$0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402FR-072K61L Features

2.61 kΩ resistance with ±1% tolerance.
Rated for 1/16W power dissipation.
Operates from -55°C to 155°C.
Compact 0402 (1005 Metric) package.
Moisture resistant thick film construction.

RC0402FR-072K61L Applications

Suitable for general purpose applications.
Ideal for automated PCB assembly.
Used in circuits requiring precise resistance.
Reliable performance in varying temperatures.

RC0402FR-072K61L FAQs

6 frequently asked questions generated from this part’s specifications.

What is the resistance value of the RC0402FR-072K61L?

The resistance value is 2.61 kΩ.

What is the tolerance of the Yageo RC0402FR-072K61L resistor?

The tolerance is ±1%.

What is the power rating for the RC0402FR-072K61L chip resistor?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the RC0402FR-072K61L in millimeters?

The dimensions are 1.00mm in length, 0.50mm in width, and 0.40mm in height.

What is the package type for the RC0402FR-072K61L?

The package type is 0402 (1005 Metric) for surface mounting.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Yageo
Composition	Thick Film
Features	Moisture Resistant
Height	0.40mm (0.016")
Length	1.00mm (0.039")
Mounting Type	Surface Mount
Number of Terminations	2
Operating Temperature	-55°C ~ 155°C
Power (Watts)	0.063W, 1/16W
Resistance	2.61 kΩ
Supplier Device Package	0402
Temperature Coefficient	±100ppm/°C
Tolerance	±1%
Width	0.50mm (0.020")
