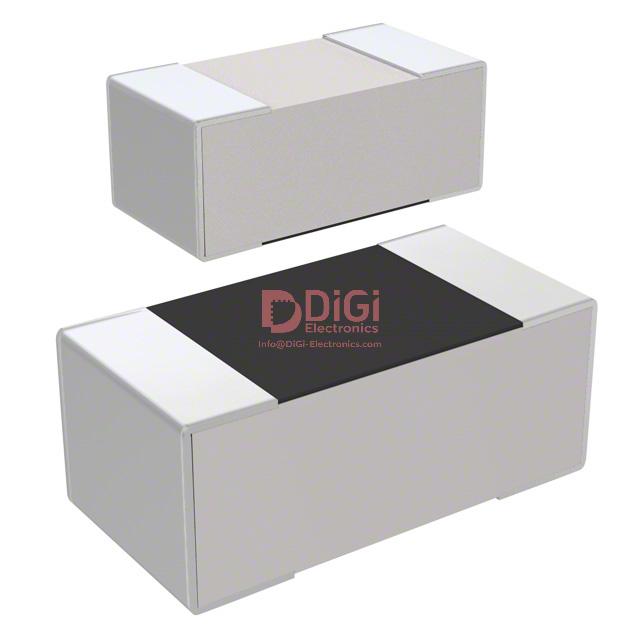

RC0402FR-0727RL The Yageo RC0402FR-0727RL is a surface mount chip resistor with a resistance of 27 Ohms and a tolerance of ±1%. It has a power rating of 1/16W and is housed in an 0402 package.
Mfr Part #:

RC0402FR-0727RL

Available from 4 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0402FR-0727RL is a surface mount chip resistor with a resistance of 27 Ohms and a tolerance of ±1%. It has a power rating of 1/16W and is housed in an 0402 package.
✓ Total Stock: 15,675 pcs
$ Price Range: $0.02

RC0402FR-0727RL Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0402FR-0727RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0402FR-0727RL Description

Short technical summary and product information.

This Yageo RC0402FR-0727RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 27 Ohms with a tight tolerance of ±1%, ensuring accurate circuit performance.



The resistor is rated for 1/16W (0.063W) power and operates within a temperature range of -55°C to 155°C. Its thick film composition and moisture-resistant features contribute to its reliability.



The component is housed in a compact 0402 (1005 Metric) package, measuring 1.00mm in length and 0.50mm in width, with a height of 0.40mm. It has two terminations and is suitable for surface mounting.



This resistor is RoHS3 compliant and has an MSL rating of 1, indicating unlimited usability under typical conditions.

RC0402FR-0727RL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0402FR-0727RL Chip Resistor
Subcategory: Surface Mount

RC0402FR-0727RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0402FR-0727RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402FR-0727RL Features

  • 27 Ohm resistance with ±1% tolerance.
  • 1/16W power rating for general use.
  • Compact 0402 (1005 Metric) package.
  • Surface mount thick film resistor.
  • Operates from -55°C to 155°C.

RC0402FR-0727RL Applications

  • Suitable for general purpose surface mount resistors.
  • Ideal for circuit impedance matching applications.
  • Used in moisture-resistant electronic assemblies.
  • Applicable in compact device design requiring space-saving components.
  • Suitable for temperature-sensitive environments with wide operating range.

RC0402FR-0727RL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0402FR-0727RL?

The resistance value is 27 Ohms.

What is the tolerance of the Yageo RC0402FR-0727RL resistor?

The tolerance is ±1%.

What is the power rating for this chip resistor?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range?

The operating temperature range is -55°C to 155°C.

What are the physical dimensions of the RC0402FR-0727RL?

The dimensions are 1.00mm L x 0.50mm W (0.039" L x 0.020" W) with a height of 0.40mm (0.016").

What is the package type for this component?

It is a 0402 (1005 Metric) surface mount chip resistor, supplied on tape and reel.
