| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,380 pcs
|
15380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,298 pcs
|
8298 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

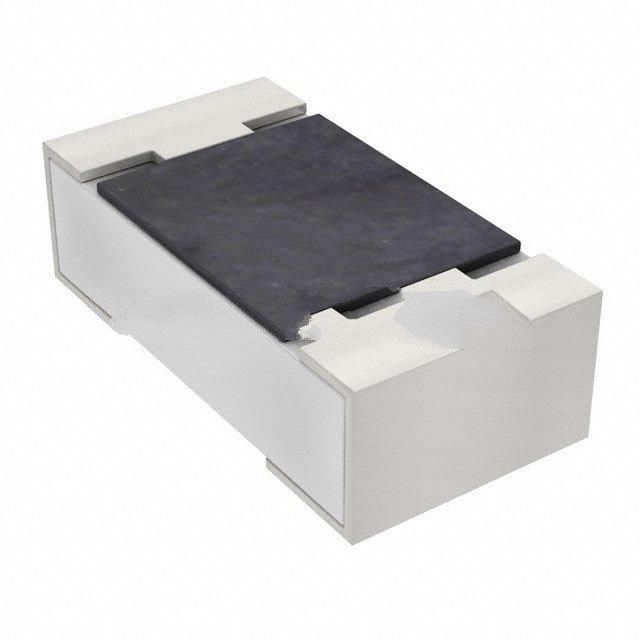

The Yageo RC0402FR-0724KL is a surface mount chip resistor from the RC_L series. It features a thick film composition and a resistance value of 24 kΩ with a tight tolerance of ±1%.
This component is rated for a power of 0.063W (1/16W) and has a temperature coefficient of ±100ppm/°C. The operating temperature range is -55°C to 155°C. Its compact 0402 (1005 Metric) package measures 1.00mm in length and 0.50mm in width, with a height of 0.40mm.
Designed for general-purpose applications, this resistor is moisture resistant and meets RoHS3 and Halogen Free standards. It is supplied in an embossed taping reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 24 kΩ.
The tolerance is ±1%.
The power rating is 0.063W, or 1/16W.
The operating temperature range is -55°C to 155°C.
The package size is 0402 (1005 Metric), with dimensions of 1.00mm length, 0.50mm width, and 0.40mm height.
Yes, it is RoHS3 Compliant.
The MSL is 1.
