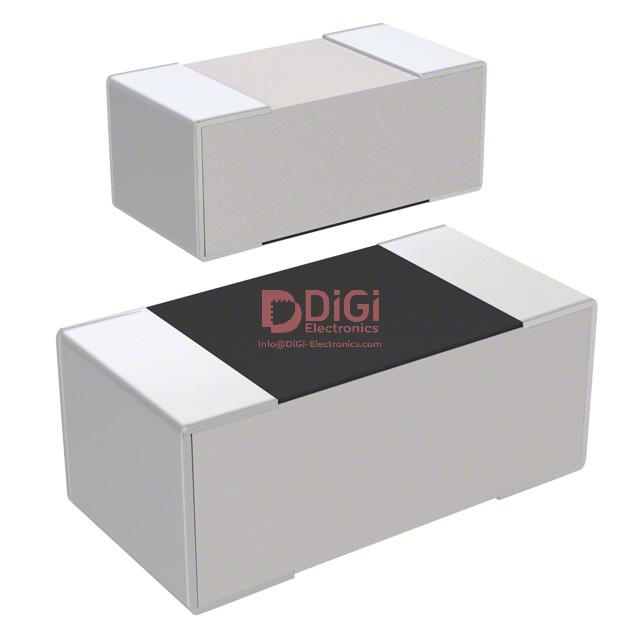

RC0402FR-07130KL The Yageo RC0402FR-07130KL is a surface mount chip resistor with a resistance of 130 kΩ and a tolerance of ±1%. It is rated for 1/16W power.
Mfr Part #:

RC0402FR-07130KL

Available from 5 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0402FR-07130KL is a surface mount chip resistor with a resistance of 130 kΩ and a tolerance of ±1%. It is rated for 1/16W power.
✓ Total Stock: 16,577 pcs
$ Price Range: $0.02

RC0402FR-07130KL Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0402FR-07130KL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0402FR-07130KL Description

Short technical summary and product information.

This Yageo RC0402FR-07130KL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 130 kΩ with a tight tolerance of ±1%, ensuring accurate performance.



The resistor has a power rating of 0.063W (1/16W) and a temperature coefficient of ±100ppm/°C, operating within a temperature range of -55°C to 155°C. Its composition is thick film, and it includes features such as moisture resistance.



Packaged in a compact 0402 (1005 Metric) case, this component is suitable for space-constrained designs. The dimensions are 1.00mm in length and 0.50mm in width, with a height of 0.40mm. It has 2 terminations and is designed for surface mounting.



This component is RoHS3 compliant and falls under MSL 1 Unlimited, indicating its suitability for various manufacturing processes.

RC0402FR-07130KL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0402FR-07130KL Chip Resistor
Subcategory: Chip Resistor

RC0402FR-07130KL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

RC0402FR-07130KL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0402FR-07130KL Features

  • 130 kΩ resistance with ±1% tolerance.
  • Rated for 1/16W power dissipation.
  • Operates from -55°C to 155°C.
  • Compact 0402 (1005 Metric) package.
  • Moisture resistant thick film construction.

RC0402FR-07130KL Applications

  • Suitable for precision resistor networks in circuits.
  • Used in moisture-resistant electronic devices.
  • Ideal for surface-mount applications in compact electronics.
  • Applicable in high-temperature environments up to 155°C.
  • Suitable for general-purpose electronic circuit applications.

RC0402FR-07130KL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0402FR-07130KL resistor?

The resistance value is 130 kΩ.

What is the tolerance of the Yageo RC0402FR-07130KL chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0402FR-07130KL resistor?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the 0402 package?

The dimensions are 1.00mm in length and 0.50mm in width.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
