| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,004 pcs
|
5004 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,004 pcs
|
5004 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Interface | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

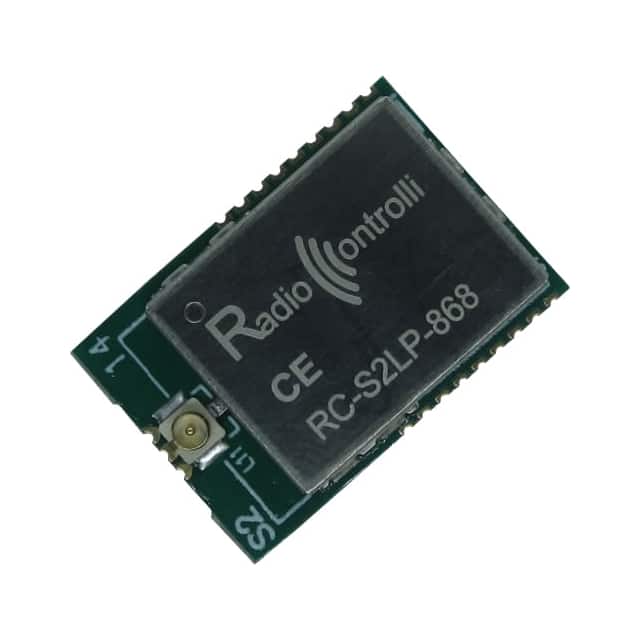

The RadioControlli RC-S2LP-868 is a sub-1GHz RF transceiver module based on the STMicroelectronics S2-LP device, operating at 868MHz. This module is designed for Internet of Things (IoT) applications, offering ultra-low power consumption with a typical receive current of 7mA and transmit current of 20mA at +14dBm, while consuming only 0.7µA in sleep mode.
It supports long-range operations with a receiver sensitivity down to -128dBm at 0.3kbps and up to -109dBm at 38.4kbps. The module provides robust signaling with 90dB of blocking to overcome interference and RF output power levels up to +16dBm. It is programmable from an external microcontroller via an SPI interface and features 4 programmable I/O pins.
The RC-S2LP-868 is suitable for applications such as low-power wireless systems, smart grid, automatic meter reading, home and building automation, wireless sensor networks, and 6LoWPAN systems. It is available in a compact 15x22mm SMD package with a metal shield and a U.FL connector for an external antenna.
Key electrical parameters include an operating voltage range of 1.8V to 3.6VDC and an operating temperature range of -30°C to 75°C. The module utilizes GFSK modulation and supports the 802.15.4 RF family and 6LoWPAN protocol.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the RC-S2LP-868 module is 1.8V to 3.6VDC.
The RC-S2LP-868 module is supplied in a 21-SMD Module package and is designed for Surface Mount.
The operating temperature range for the RC-S2LP-868 module is -30°C to 75°C.
Yes, the RC-S2LP-868 module is RoHS3 Compliant.
The receiver sensitivity of the RC-S2LP-868 module is -109dBm at 38.4 kbps and down to -128dBm at 0.3 kbps.
The maximum RF output power of the RC-S2LP-868 module can reach +16dBm.
The RC-S2LP-868 module uses an SPI serial interface for programming from an external microcontroller.
