| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,665 pcs
|
1665 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

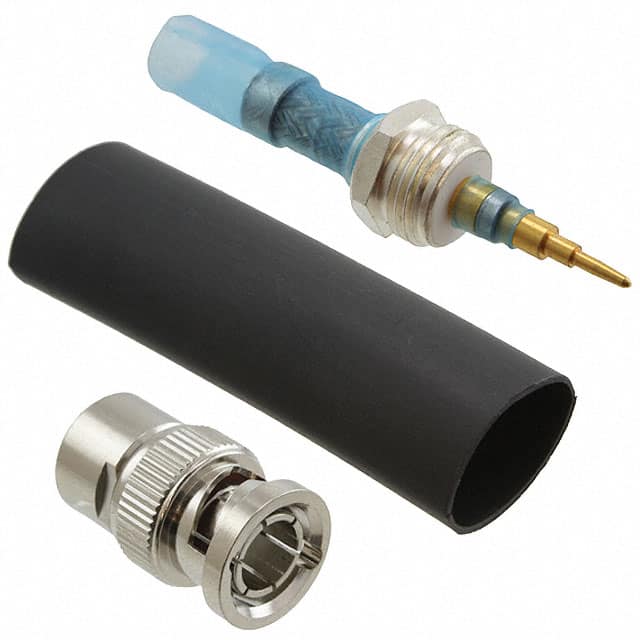

This TE Connectivity RBD-50-M-00 is a coaxial connector assembly featuring a BNC plug with a male pin. It is designed for a 50 Ohm impedance and operates at frequencies up to 4 GHz. The connector utilizes a solder termination for both the contact and shield, ensuring a secure connection.
Mounting is free hanging in-line, and it secures via a bayonet lock mechanism. The center contact is made of brass, and the housing is silver in color. This connector is suitable for cable groups including RG-58, 141, 142, 303, and 400. It has a single port.
The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1, indicating unlimited shelf life under standard conditions. REACH status is unaffected. This part is identified by the distributor part number A104831-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the RBD-50-M-00 connector is 50 Ohm.
The RBD-50-M-00 connector has a maximum operating frequency of 4 GHz.
The TE Connectivity RBD-50-M-00 is a BNC plug connector with a male pin.
The connector features solder termination for both the contact and the shield.
The RBD-50-M-00 has a free hanging (in-line) mounting type.
The Moisture Sensitivity Level (MSL) for the RBD-50-M-00 is 1 Unlimited.
