| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33,488 pcs
|
33488 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,920 pcs
|
3920 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,567 pcs
|
2567 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |
The RB715FT106 is a Schottky diode array from ROHM Semiconductor, featuring a common cathode configuration. It is designed for small signal applications with a maximum reverse voltage of 40V and average rectified current of 1A at 10V reverse voltage. The forward voltage is 370 mV at 1 mA, typical for Schottky diodes, enabling low power loss in high-speed switching circuits.

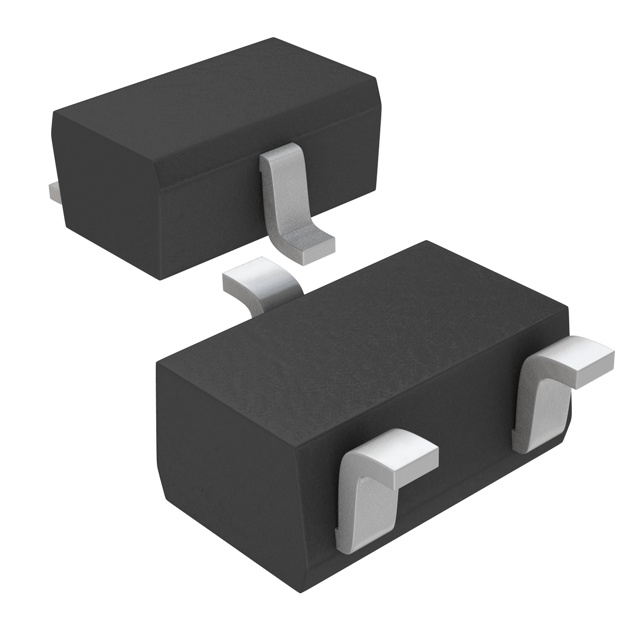

The device is rated for operation up to 125°C and is categorized as small signal speed (≤200 mA Io, any speed). It comes in a surface mount SC-70/SOT-323 package, also known as UMD3, which is suitable for compact PCB layouts.
This diode array is appropriate for applications such as high-speed switching, low power rectification, and clamping protection in portable and low-voltage electronics. The common cathode configuration simplifies circuit design where multiple diodes share a common return path.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.23 | $0.23 |
| 100+ | $0.15 | $0.15 |
| 500+ | $0.11 | $0.11 |
| 1,000+ | $0.10 | $0.10 |
| 3,000+ | $0.08 | $0.08 |
| 6,000+ | $0.07 | $0.07 |
| 9,000+ | $0.06 | $0.06 |
| 24,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 V.
1 A at 10 V reverse voltage.
370 mV at 1 mA.
SC-70/SOT-323 (UMD3).
1 Pair Common Cathode.
Up to 125°C maximum.
Surface Mount.
