| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Flammability Rating | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Reverse Current | |
| Reverse Voltage | |
| Speed | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Thermal Resistance | |
| Voltage |

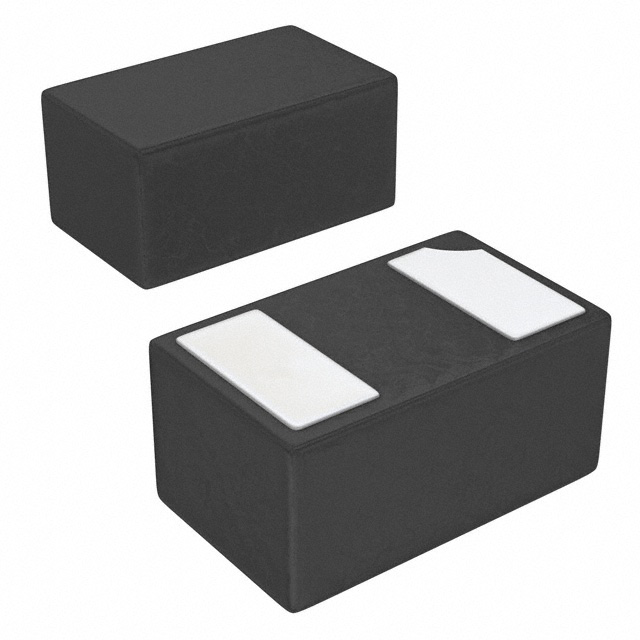

The RB521S-30L2-TP is a Schottky rectifier diode from Micro Commercial Co designed for low-voltage, low-current applications. It has a maximum reverse voltage of 30V and a nominal forward current of 100mA. The forward voltage is typically 350mV at 10mA, enabling efficient rectification with minimal power loss.
This diode is housed in a DFN1006-2L surface mount package, which is suitable for compact PCB designs. It features a peak forward surge current rating of 1A and a maximum reverse current of 10µA at 10V reverse voltage. The operating junction temperature range is -55°C to +125°C, with a storage temperature range of -55°C to +150°C.
The device is RoHS3 compliant, lead-free, and halogen-free, meeting UL 94 V-0 flammability rating. It is supplied in tape and reel packaging with 10,000 pieces per reel, making it suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 2,000+ | $0.05 | $0.05 |
| 5,000+ | $0.04 | $0.04 |
| 10,000+ | $0.04 | $0.04 |
| 20,000+ | $0.04 | $0.04 |
| 30,000+ | $0.03 | $0.03 |
| 50,000+ | $0.03 | $0.03 |
| 70,000+ | $0.03 | $0.03 |
| 100,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 30V.
The nominal forward current is 100mA.
The maximum forward voltage is 350mV at 10mA.
It comes in a DFN1006-2L surface mount package.
The operating junction temperature range is -55°C to +125°C.
Yes, it is RoHS3 compliant and lead-free.
The peak forward surge current is 1A for 8.3ms.
