| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | 1526 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Mounting Type | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology |

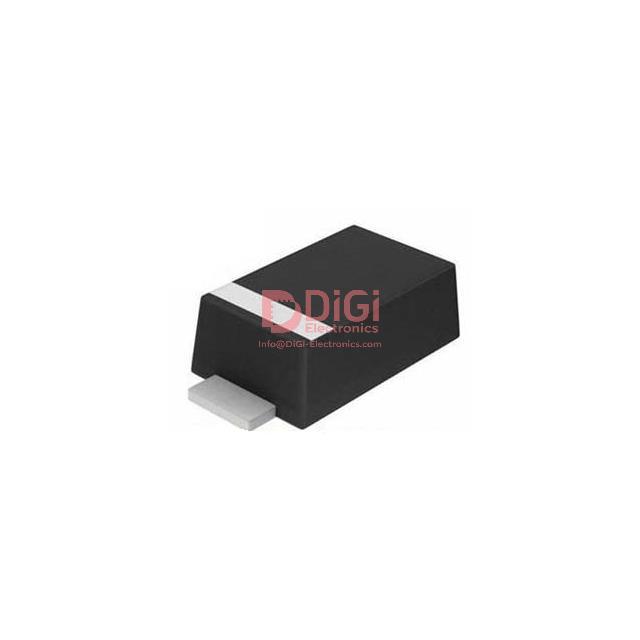

The ES1JSL from SMC Diode Solutions is an ultra-fast rectifier diode designed for various electronic applications. It features a maximum reverse voltage of 600V and an average rectified current of 1A.
This diode boasts a fast recovery time of 35ns, with a speed rating of <= 500ns, > 200mA (Io). The forward voltage is a maximum of 1.7V at 1A, and the reverse leakage current is 5µA at 600V. Its capacitance is rated at 10pF at 4V and 1MHz.
The ES1JSL is packaged in a Tape & Reel (TR) format and utilizes a surface mount type. The package case is SOD-123F, with the supplier device package being SOD-123FL. This component is active and built with standard technology.
Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. These specifications make the ES1JSL suitable for applications requiring efficient and reliable rectification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (Vr) for the ES1JSL diode is 600V.
The ES1JSL diode has an average rectified current (Io) rating of 1A.
The maximum forward voltage (Vf) for the ES1JSL diode at 1A is 1.7V.
The reverse recovery time (trr) for the ES1JSL diode is 35ns.
The ES1JSL diode is supplied in a Tape & Reel (TR) package, with a SOD-123FL case.
Yes, the ES1JSL diode is RoHS3 Compliant.
