| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,420 pcs
|
1420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
330 pcs
|
330 pcs | On Request | 1 | On Request | On Request | 2026-01-25 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Reverse Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

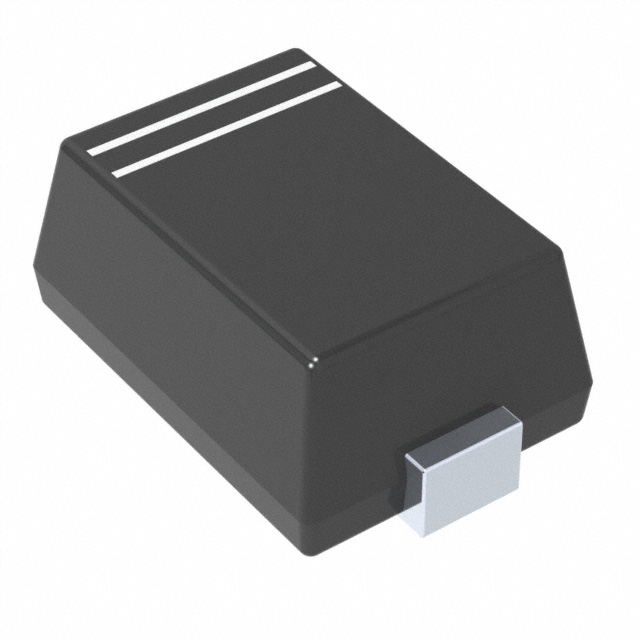

The RB521CM-30T2R is a Schottky barrier diode manufactured by ROHM Semiconductor. It is designed for rectification applications requiring low forward voltage drop and fast switching. The diode is rated for a maximum DC reverse voltage of 30V and an average rectified current of 100mA.
Electrical characteristics include a typical forward voltage of 350mV at a forward current of 10mA. The device features fast recovery time of less than 500ns when tested with Io > 200mA. The operating junction temperature range extends up to 150°C.
The diode is housed in a compact 2-SMD, Flat Lead package designated as VMN2M. It is surface mountable, suitable for automated assembly processes. The package is rated with MSL level 1 for unlimited moisture sensitivity.
Typical applications include polarity protection, freewheeling diodes, and low-voltage rectification in portable electronics. The device is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.34 | $0.34 |
| 10+ | $0.21 | $0.21 |
| 100+ | $0.13 | $0.13 |
| 500+ | $0.10 | $0.10 |
| 1,000+ | $0.08 | $0.08 |
| 5,000+ | $0.06 | $0.06 |
| 8,000+ | $0.05 | $0.05 |
| 24,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage is 30V.
The average rectified current is 100mA.
The typical forward voltage is 350mV at 10mA.
The reverse recovery time is less than 500ns when tested with Io > 200mA.
The diode is available in a 2-SMD, Flat Lead package designated as VMN2M.
The maximum operating temperature is 150°C.
