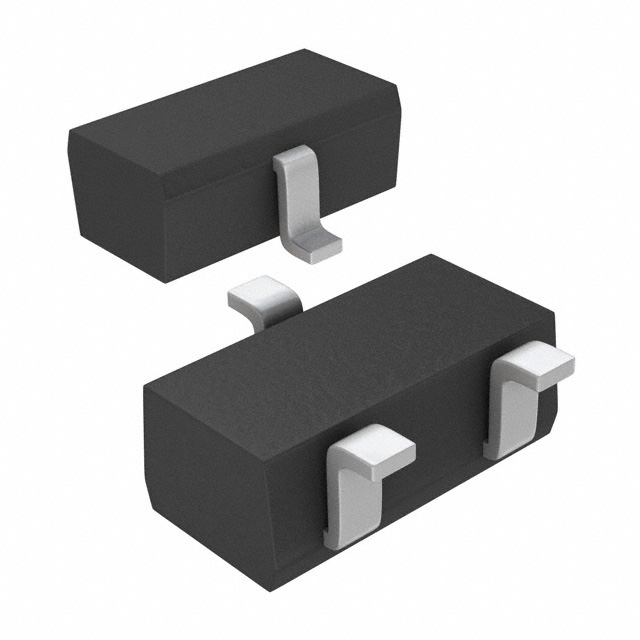

RB420DT146 RB420DT146 is a 40V, 100mA Schottky diode from ROHM Semiconductor in an SMD3 surface-mount package.
Mfr Part #:

RB420DT146

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
RB420DT146 is a 40V, 100mA Schottky diode from ROHM Semiconductor in an SMD3 surface-mount package.
✓ Total Stock: 42,498 pcs
$ Price Range: $0.09 - $0.57

RB420DT146 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
30,000 pcs
On Request
30000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
12,498 pcs
On Request
12498 pcs On Request 1 On Request On Request 09+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RB420DT146 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Current
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

RB420DT146 Description

Short technical summary and product information.

The RB420DT146 is a Schottky barrier diode from ROHM Semiconductor. It is designed for low-power rectification and switching applications requiring a low forward voltage drop. The diode has a maximum reverse voltage of 40V and an average rectified current rating of 100mA. At a forward current of 10mA, the maximum forward voltage is 450mV. The reverse leakage current is 100µA at the rated reverse voltage.



The device is housed in a compact SMD3 package (TO-236-3 / SC-59 / SOT-23-3) and is intended for surface mount assembly. The junction capacitance is typically 6pF at 10V and 1MHz, making it suitable for high-frequency applications. The maximum operating junction temperature is 125°C. This diode is suitable for use in general-purpose rectification, polarity protection, and low-voltage clamping circuits where Schottky characteristics are beneficial.

RB420DT146 Quick Information

Product Type: Schottky Diode
Canonical Name: Schottky Diode 40V 100mA SMD3
Subcategory: Single Rectifier Diode

RB420DT146 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RB420DT146 Estimated Pricing

Qty Low High
1+ $0.57 $0.57
10+ $0.35 $0.35
100+ $0.23 $0.23
500+ $0.17 $0.17
1,000+ $0.15 $0.15
3,000+ $0.13 $0.13
6,000+ $0.11 $0.11
9,000+ $0.10 $0.10
24,000+ $0.09 $0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

RB420DT146 Features

  • Schottky diode with 40V reverse voltage rating.
  • 100mA average rectified current capability.
  • Low 450mV forward voltage at 10mA.
  • Surface mount SMD3 package for compact designs.

RB420DT146 Applications

  • Low voltage rectification in portable devices.
  • Polarity protection for battery powered circuits.
  • High frequency switching in small signal circuits.

RB420DT146 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of RB420DT146?

The maximum reverse voltage (Vr) is 40V.

What is the average rectified current rating?

The average rectified current (Io) is 100mA.

What is the forward voltage drop at 10mA?

The maximum forward voltage (Vf) is 450mV at a forward current of 10mA.

What package is the RB420DT146 available in?

The diode is packaged in SMD3, which corresponds to TO-236-3, SC-59, or SOT-23-3.

What is the typical junction capacitance of this diode?

The typical junction capacitance is 6pF at 10V reverse bias and 1MHz test frequency.
