| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,630 pcs
|
2630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Forward Current (@ Tc=100 °C, 60 Hz half sine, resistive load) | |
| Current | |
| Forward Voltage (Maximum @ IF=1 A) | |
| Junction Temperature | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Repetitive Peak Reverse Voltage | |
| Reverse Current | |
| Reverse Voltage | |
| Speed | |
| Standard Package Quantity | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Tape and Reel | |
| Technology | |
| Voltage |
The RB168VAM100TR is a Schottky barrier diode from ROHM Semiconductor designed for general rectification applications. It features a repetitive peak reverse voltage of 100V and an average rectified forward current of 1A at a case temperature of 100°C. The diode offers a low forward voltage of 0.84V maximum at 1A and a very low reverse current of 0.3µA at 100V.
This device is built with silicon epitaxial planar technology and is packaged in a compact surface-mount TUMD2M (SOD-323HE / SC-108B) package with flat leads. It is supplied on embossed tape and reel with 3000 pieces per reel, suitable for automated assembly.
The RB168VAM100TR is suitable for general rectification in power supplies, DC-DC converters, and other low-voltage high-efficiency circuits where Schottky diodes provide fast switching and low forward voltage drop.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.29 | $0.29 |
| 100+ | $0.18 | $0.18 |
| 500+ | $0.14 | $0.14 |
| 1,000+ | $0.12 | $0.12 |
| 3,000+ | $0.10 | $0.10 |
| 6,000+ | $0.09 | $0.09 |
| 9,000+ | $0.08 | $0.08 |
| 24,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage and reverse voltage are both 100V.
The maximum forward voltage is 0.84V at a forward current of 1A.

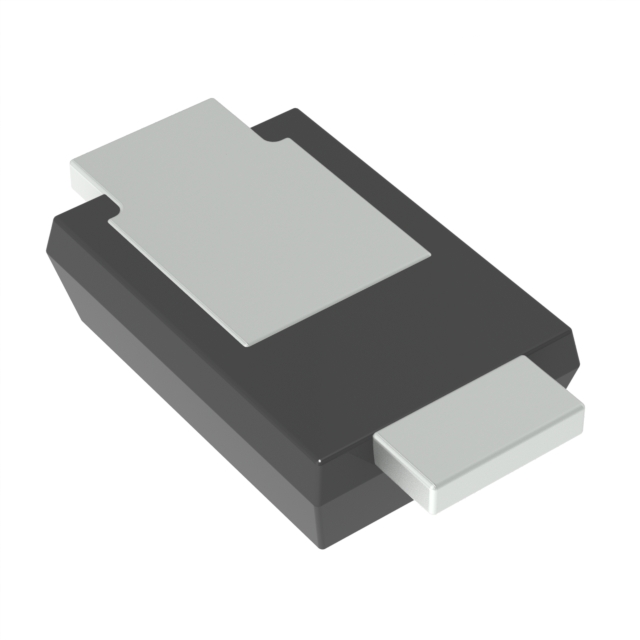

The diode is housed in a surface-mount TUMD2M package (also known as SOD-323HE / SC-108B) with flat leads.
The maximum junction temperature is 150°C.
The peak forward surge current is 5A for a non-repetitive 60Hz half sine wave, one cycle at 25°C.
