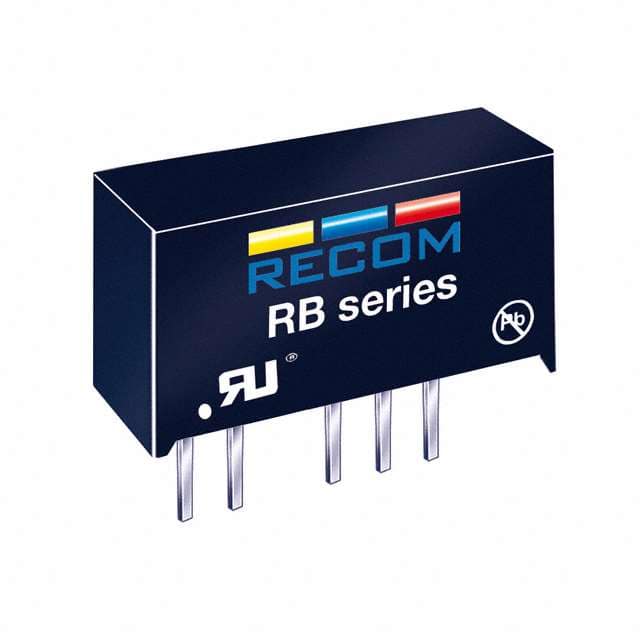

RB-3.305S RB-3.305S is a 1W isolated DC/DC converter from Recom Power. It converts a nominal 3.3V input to 5V output at 200mA in a compact SIP7 through-hole package.
Mfr Part #:

RB-3.305S

Available from 2 distributors
Mfr Name: Recom Power
Recom Power
RB-3.305S is a 1W isolated DC/DC converter from Recom Power. It converts a nominal 3.3V input to 5V output at 200mA in a compact SIP7 through-hole package.
✓ Total Stock: 1,368 pcs
$ Price Range: $6.87 - $7.97

RB-3.305S Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
684 pcs
On Request
684 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
684 pcs
On Request
684 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RB-3.305S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Lead Style
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

RB-3.305S Description

Short technical summary and product information.

The RB-3.305S is part of Recom Power's RB series of low-cost, isolated DC/DC converters. This 1W device provides a regulated 5V output from a nominal 3.3V input with a maximum output current of 200mA. Typical efficiency is 78% at full load and 25°C ambient.



The converter offers 1kVDC input-to-output isolation (tested for 1 second) and operates with a nominal switching frequency of 100kHz. Output ripple and noise are limited to 100mVp-p maximum (20MHz bandwidth). It requires no minimum load and includes basic short circuit protection (SCP). The input voltage range is ±10% around the 3.3V nominal.



Packaged in a compact 7-SIP module with 5 leads, the RB-3.305S is designed for through-hole mounting. Its dimensions are 19.7mm x 6.0mm x 10.2mm. The operating ambient temperature range is -40°C to +85°C. The module is UL60950-1, CAN/CSA-C22.2 60950-1, and IEC/EN60950-1 certified, and EN55032 compliant for commercial ITE applications.

RB-3.305S Quick Information

Product Type: Isolated DC/DC Converter
Series: RB
Canonical Name: Recom Power RB-3.305S Isolated DC/DC Converter, 5V Output, 1W
Subcategory: 1W SIP7 Isolated Module

RB-3.305S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RB-3.305S Estimated Pricing

Qty Low High
1+ $7.97 $7.97
5+ $7.73 $7.73
10+ $7.61 $7.61
25+ $7.37 $7.37
50+ $7.25 $7.25
100+ $7.13 $7.13
250+ $6.97 $6.97
500+ $6.87 $6.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

RB-3.305S Features

  • Converts 3.3V to 5V at 200mA output.
  • 1W isolated DC/DC converter in SIP7 package.
  • 1kVDC isolation between input and output.
  • Wide operating temperature range -40°C to +85°C.
  • No minimum load required for operation.

RB-3.305S Applications

  • Used in commercial ITE power supplies.
  • Suitable for isolating DC power rails.
  • Ideal for low-power board mount designs.

RB-3.305S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the RB-3.305S?

Nominal input voltage is 3.3V with ±10% tolerance, resulting in a range of 2.97V to 3.63V.

What package does the RB-3.305S come in?

7-SIP Module, 5 Leads, through-hole mounting.

What is the operating temperature range?

-40°C to +85°C ambient.

Is the RB-3.305S RoHS compliant?

Yes, it is RoHS3 compliant (unverified).

What is the isolation voltage?

1kVDC minimum for 1 second.

What is the typical efficiency?

78% at nominal input, full load, 25°C.

What is the output ripple and noise?

100mVp-p maximum with 20MHz bandwidth.
