Mfr Part #:

RAZ62311AM

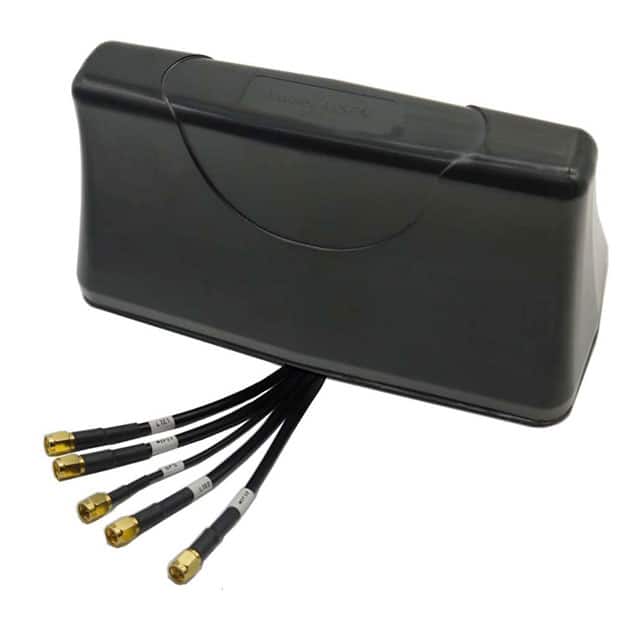

Name: RAZ62311AM
Brand: Pulse Electronics
SKU: RAZ62311AM

Mfr Name: Pulse Electronics

Description:

RF ANT 802MHZ/1.582GHZ MOD ADH

Stock on Request

RAZ62311AM Description

Short technical summary and product information.

RF ANT 802MHZ/1.582GHZ MOD ADH

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

RAZ62312AM

Pulse Electronics

RF ANT 802MHZ/1.582GHZ MOD ADH

Category	RF Antennas
Manufacturer Name	Pulse Electronics
Antenna Type	Module
Applications	Beidou, DSRC, Galileo, GLONASS, GPS, LTE, Wi-Fi
Features	Cable - 5.18m, LNA
Frequency (Center	802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz
Frequency Group	Wide Band
Frequency Range	644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Gain	4.6dBi, 4.9dBi, 6dBi, 6.6dBi
Height (Max)	3.644" (92.55mm)
Ingress Protection	IP67
Mounting Type	Adhesive
Number of Bands	6
Power	45 W
RF Family	Cellular, Navigation, WiFi
Termination	SMA Male (3), RP-SMA Male (3)
VSWR	2
