| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
397 pcs
|
397 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Lead Spacing | |
| Lead Style | |
| Mating Diameter | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions/Contacts | |
| Shielding | |
| Tape & Reel | |
| Termination |

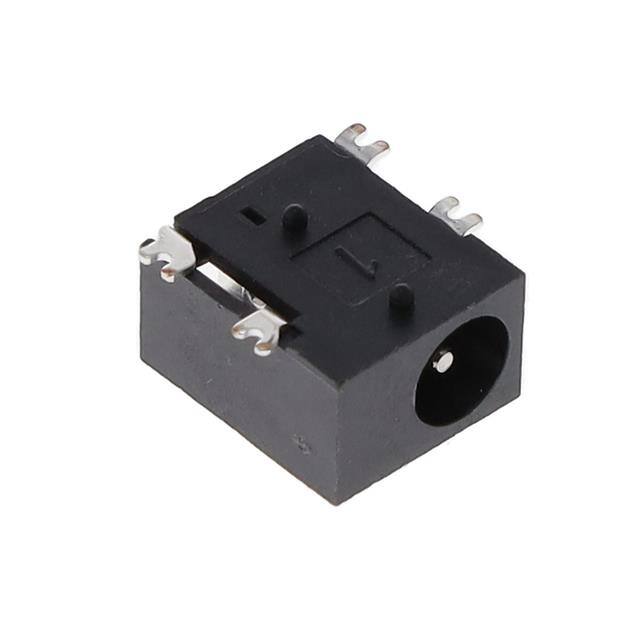

This Conxall/Switchcraft RASM742TRX is a power connector jack with a male gender, suitable for various power applications. It is designed for surface mount, right angle mounting.
The connector features a mating diameter of 1.05mm ID (0.041") and 3.50mm OD (0.138"), with an actual diameter of 0.039" (1.00mm ID) and 0.154" (3.90mm OD). It has 2 conductors and 3 contacts, with an internal single switch that is normally closed. The termination type is solder, and it is unshielded.
This power connector is rated for a current of 3A. It is supplied in Tape & Reel packaging.
Key specifications include its surface mount right angle mounting type, 3A current rating, and solder termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3A.
It supports surface mount, right angle mounting.
The mating diameter is 1.05mm ID (0.041") and 3.50mm OD (0.138").
Yes, it has a single normally closed internal switch.
It has 2 conductors and 3 contacts.
