| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139 pcs
|
139 pcs | On Request | 1 | On Request | On Request | 0707 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Positions | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style |

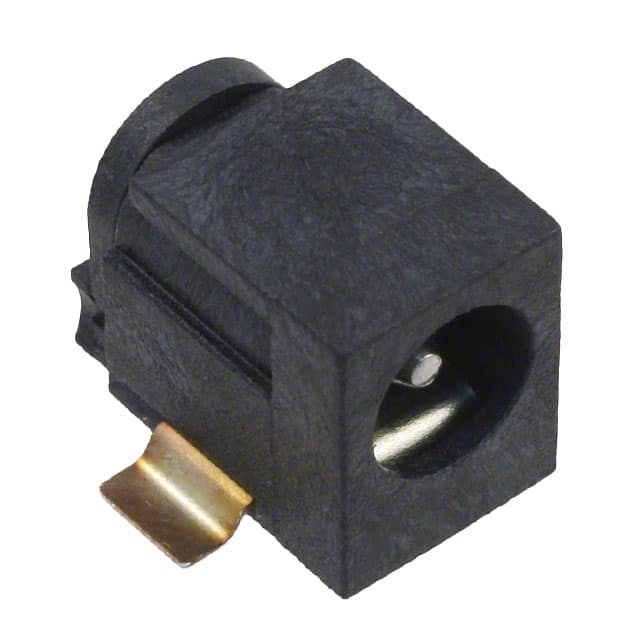

The RASM722X is a power jack connector from Conxall/Switchcraft designed for barrel connector applications. It features a male pin with industry standard mating diameters of 2.10mm inner diameter and 5.50mm outer diameter, with actual diameters of 1.93mm ID and 6.30mm OD. The connector is surface mounted at a right angle and terminated by solder. It is unshielded and includes a single switch that is normally closed. The electrical rating is 5A continuous current. The connector has 2 conductors and 3 contacts.
The part is listed as RoHS3 compliant and REACH unaffected, with MSL 1 (unlimited) moisture sensitivity. These compliance claims are unverified. The connector is intended for power supply and charging applications where a standard 2.1mm x 5.5mm barrel jack interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.53 | $2.53 |
| 10+ | $2.15 | $2.15 |
| 25+ | $1.92 | $1.92 |
| 100+ | $1.82 | $1.82 |
| 300+ | $1.69 | $1.69 |
| 500+ | $1.62 | $1.62 |
| 1,000+ | $1.55 | $1.55 |
| 2,500+ | $1.45 | $1.45 |
| 5,000+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 2 conductors and 3 contacts.
5 A.
Surface mount, right angle.
Industry recognized: 2.10mm ID, 5.50mm OD. Actual: 1.93mm ID, 6.30mm OD.
Male.
Yes, single switch, normally closed.
