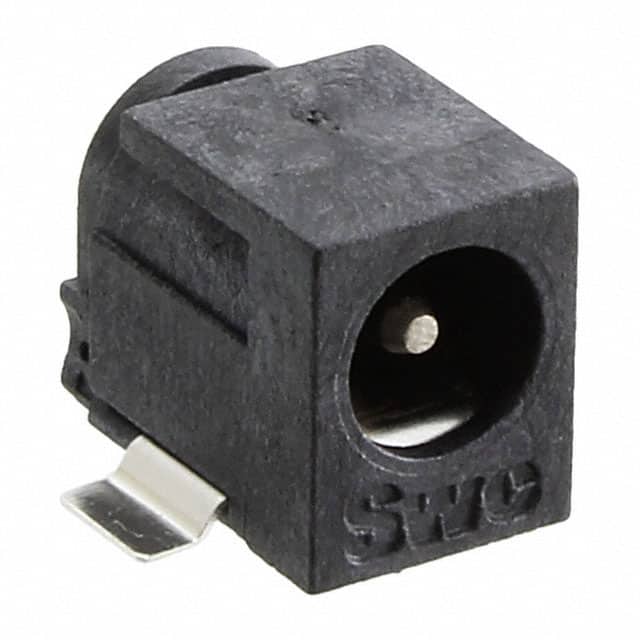

RASM722PTR13X The Conxall/Switchcraft RASM722PTR13X is a power connector featuring a 5A current rating and solder termination. It is designed for surface mount right angle applications.
Mfr Part #:

RASM722PTR13X

Available from 1 distributors
Mfr Name: Conxall/Switchcraft
Conxall/Switchcraft
The Conxall/Switchcraft RASM722PTR13X is a power connector featuring a 5A current rating and solder termination. It is designed for surface mount right angle applications.
✓ Total Stock: 120 pcs
$ Price Range: $1.00

RASM722PTR13X Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RASM722PTR13X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actual Diameter
Connector Type
Current Rating (Amps)
Gender
Industry Recognized Mating Diameter
Insulation Color
Internal Switch(s)
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Shielding
Storage Temperature
Tape & Reel
Termination
Termination Style
View Similar Products (0)

RASM722PTR13X Description

Short technical summary and product information.

The Conxall/Switchcraft RASM722PTR13X is a power connector designed for reliable electrical connections. It features a 5A current rating and utilizes solder termination for secure connections.



This connector is suitable for surface mount right angle applications, offering flexibility in PCB layout. It has a male gender and an unshielded design. The mating diameter is specified as 2.1mm ID (0.083") and 5.5mm OD (0.217"), with actual diameters of 1.93mm ID and 6.30mm OD.



The connector includes a single switch, normally closed, and has 2 conductors and 3 contacts. The insulation color is black. It is classified under power connectors and barrel connectors.



Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status, though these are unverified.

RASM722PTR13X Quick Information

Product Type: Power Connector
Canonical Name: Conxall/Switchcraft RASM722PTR13X Power Connector
Subcategory: Barrel Connector

RASM722PTR13X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RASM722PTR13X Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

RASM722PTR13X Features

  • 5A current rating for power applications.
  • Solder termination for secure connections.
  • Surface mount right angle mounting.
  • 2.1x5.5mm mating diameter.
  • Single switch, normally closed.

RASM722PTR13X Applications

  • Ideal for DC power input jacks.
  • Suitable for compact electronic devices.
  • Used in power supply units.
  • Applicable for portable equipment.

RASM722PTR13X FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating for the RASM722PTR13X?

The current rating is 5 A.

What type of mounting does the RASM722PTR13X support?

It supports Surface Mount, Right Angle mounting.

What are the mating diameter specifications for this power jack?

The mating diameter is 2.10mm ID (0.083") and 5.50mm OD (0.217").

Does the RASM722PTR13X have an internal switch?

Yes, it features a Single Switch, Normally Closed.

What termination method is used for the RASM722PTR13X?

The termination method is Solder.
