Mfr Part #:

RASM712X

Name: RASM712X
SKU: RASM712X

Mfr Name: Conxall/Switchcraft

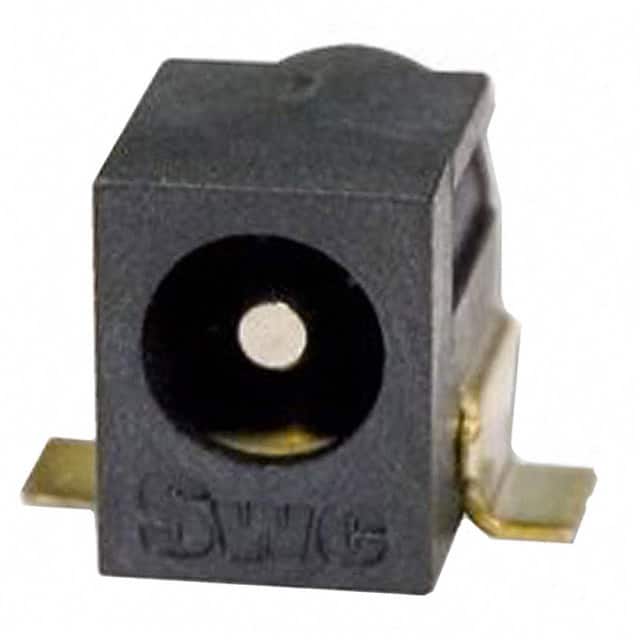

CONN PWR JACK 2.5X5.5MM SOLDER

Stock on Request

RASM712X Description

Short technical summary and product information.

CONN PWR JACK 2.5X5.5MM SOLDER

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

RASM712PX

Conxall/Switchcraft

RASM712PX is a surface mount, right angle power jack connector from Conxall/Switchcraft with 2.5mm ID and 5.5mm OD mating diameters, rated for 5A.

RASM712P

Conxall/Switchcraft

RASM712P is a surface mount, right angle power jack connector with 2.50mm ID and 5.50mm OD, rated for 5A.

RASH712BKZ

Conxall/Switchcraft

DC POWER JACK, BKZ LOCKING SERIE

RASM712BKZ

Conxall/Switchcraft

DC POWER JACK, BKZ LOCKING SERIE

Account

Category	Power Connectors
Manufacturer Name	Conxall/Switchcraft
Actual Diameter	0.098" (2.50mm ID), 0.248" (6.30mm OD)
Connector Type	Jack
Current Rating (Amps)	5 A
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Internal Switch(s)	Single Switch, Normally Closed
Mounting Type	Surface Mount, Right Angle
Number of Positions	2 Conductors, 3 Contacts
Shielding	Unshielded
Termination	Solder
