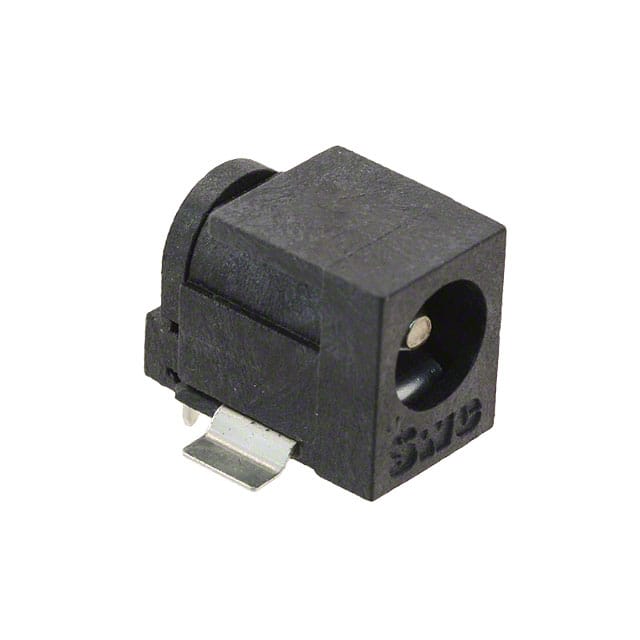

The Conxall/Switchcraft RASH732X is a male power jack connector designed for board-level power connections. It offers 2 conductors with 2 contacts and is rated for 5A continuous current. The connector supports both surface mount and through hole right angle mounting, providing flexibility in PCB design. Termination is via solder, and the component includes a board guide for alignment during assembly.
An internal single switch, normally closed, is integrated into the design. The connector is unshielded and has an actual diameter of 0.048" (1.22mm) inner diameter and 0.169" (4.30mm) outer diameter. It is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance claims are unverified.
This power jack is suitable for applications requiring a reliable, low-profile DC power input connector. The board guide feature aids in automated assembly, and the right angle orientation saves space on the board. The connector's 5A current rating makes it appropriate for moderate power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.93 | $2.93 |
| 10+ | $2.49 | $2.49 |
| 25+ | $2.22 | $2.22 |
| 100+ | $2.10 | $2.10 |
| 300+ | $1.97 | $1.97 |
| 500+ | $1.84 | $1.84 |
| 1,000+ | $1.68 | $1.68 |
| 2,500+ | $1.62 | $1.62 |
| 5,000+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 conductors, 2 contacts.
5 A.
Surface mount, right angle, and through hole.
Single switch, normally closed.
0.048" (1.22mm) inner diameter, 0.169" (4.30mm) outer diameter.
No, it is unshielded.
Solder.
