Mfr Part #:

RAPC752SX

Name: RAPC752SX
Brand: Conxall/Switchcraft
SKU: RAPC752SX

Mfr Name: Conxall/Switchcraft

Description:

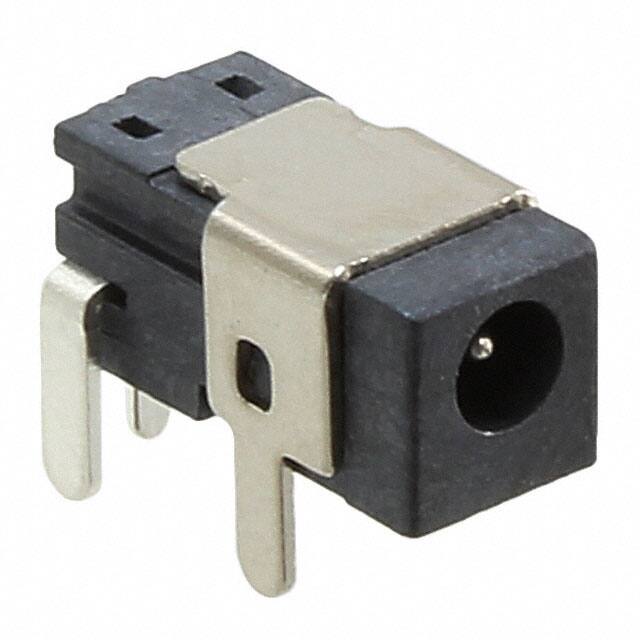

CONN PWR JACK 0.7X2.35MM SOLDER

Stock on Request

RAPC752SX Description

Short technical summary and product information.

CONN PWR JACK 0.7X2.35MM SOLDER

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Power Connectors
Manufacturer Name	Conxall/Switchcraft
Actual Diameter	0.026" (0.65mm ID), 0.108" (2.75mm OD)
Connector Type	Jack
Current Rating (Amps)	3 A
Gender	Male
Industry Recognized Mating Diameter	0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Internal Switch(s)	Single Switch, Normally Closed
Mounting Type	Through Hole, Right Angle
Number of Positions	2 Conductors, 3 Contacts
Shielding	Shielded
Termination	Solder
