| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | 1551 | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Current Rating (Amps) | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Termination Style |

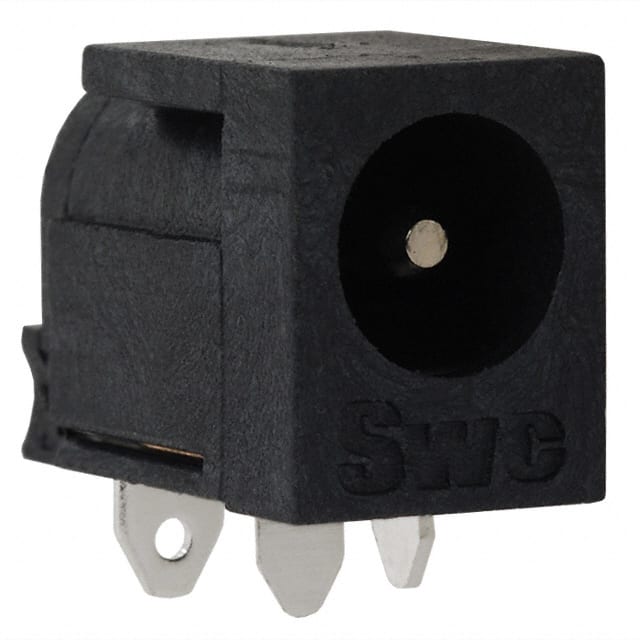

The Conxall/Switchcraft RAPC722X is a through-hole, right-angle power jack connector designed for reliable power delivery. It features a standard 2.00mm inner diameter and 5.50mm outer diameter mating interface, making it compatible with common barrel-type power plugs.
This connector is rated for a continuous current of 5A and includes a single switch, normally closed internal switch mechanism. The unshielded design and solder eyelet termination simplify integration into a variety of power supply and device designs.
The RAPC722X is RoHS3 compliant and REACH unaffected, supporting environmentally conscious manufacturing. Its right-angle orientation and through-hole mounting make it suitable for PCB layouts where space is constrained.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.08 | $2.08 |
| 10+ | $1.79 | $1.79 |
| 25+ | $1.60 | $1.60 |
| 100+ | $1.51 | $1.51 |
| 300+ | $1.40 | $1.40 |
| 500+ | $1.35 | $1.35 |
| 1,000+ | $1.28 | $1.28 |
| 2,500+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RAPC722X is rated for 5A.
The industry recognized mating diameter is 2.00mm ID and 5.50mm OD.
It uses through-hole, right-angle mounting.
It uses solder eyelet(s) termination.
No, it is unshielded.
Yes, it has a single switch, normally closed.
