Mfr Part #:

RAPC712S

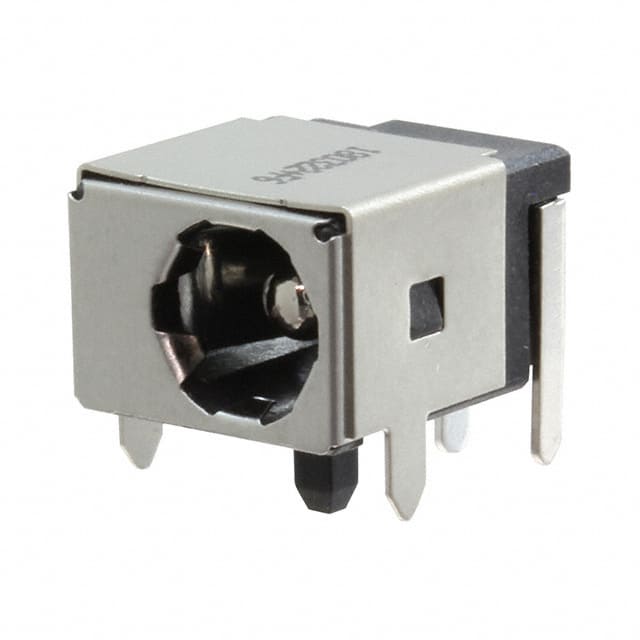

Name: RAPC712S
Brand: Conxall/Switchcraft
SKU: RAPC712S

Mfr Name: Conxall/Switchcraft

Description:

DC POWER JACK, SHIELDED, RAPC MO

Stock on Request

RAPC712S Description

Short technical summary and product information.

DC POWER JACK, SHIELDED, RAPC MO

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Power Connectors
Manufacturer Name	Conxall/Switchcraft
Actual Diameter	0.098" (2.50mm ID), 0.236" (6.00mm OD)
Connector Type	Jack
Current Rating (Amps)	5 A
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Insulation Color	Black
Internal Switch(s)	Single Switch
Mating Length	0.374" (9.50mm)
Mounting Type	Through Hole, Right Angle
Number of Positions	2 Conductors, 3 Contacts
Operating Temperature	-40°C ~ 65°C
Shielding	Shielded
Termination	Solder
Voltage	48VAC/DC
