| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Certifications | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Isolation Capacitance | |
| Isolation Resistance | |
| Isolation Voltage (Nominal @ rated for 1 minute) | |
| Isolation Voltage (Nominal @ tested for 1 second) | |
| Line Regulation | |
| Load Regulation | |
| MTBF (Nominal @ +25 °C) | |
| MTBF (Nominal @ +85 °C) | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Frequency | |
| Operating Temperature | |
| Output Ripple and Noise | |
| Output Voltage | |
| Output Voltage Accuracy | |
| Package Type | |
| Package Weight | |
| Power (Watts) | |
| Reflow Temperature | |
| Relative Humidity | |
| Short circuit protection | |
| Standard Package Qty (Reel) | |
| Standard Package Qty (Tube) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Vapor Phase Process | |
| Voltage | |
| input_voltage (Maximum @ Maximum) | |
| input_voltage (Nominal @ Nominal) |

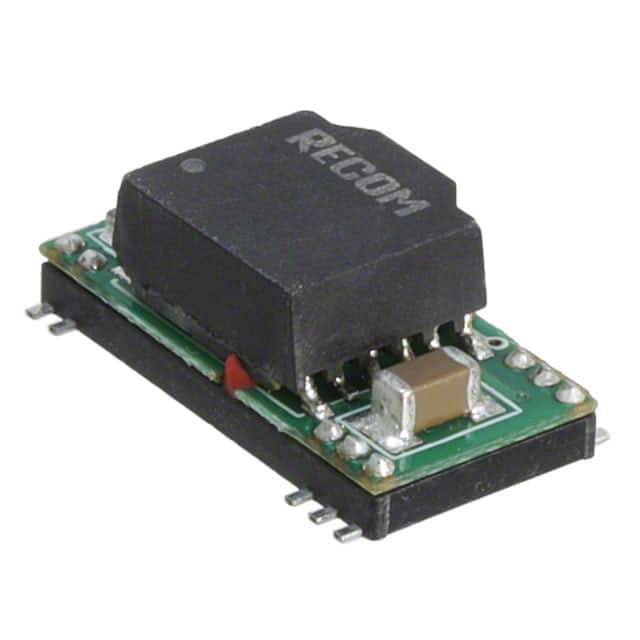

The Recom Power RAM-2405S is an isolated DC-DC converter module in a surface mount SMD package. It accepts a nominal 24V input (21.6V to 26.4V) and delivers a regulated 5V output at 200mA, providing 1W of output power. The module features typical efficiency of 80% at nominal input and full load.
Key electrical characteristics include output voltage accuracy of -1% typical, ±5% maximum, line regulation of 1.2% typical and 1.5% maximum, and load regulation of 10% typical and 15% maximum. Output ripple and noise are 50 mVp-p typical, 100 mVp-p maximum. The operating frequency ranges from 20 kHz to 90 kHz.
The converter offers 3750VDC input-to-output isolation (tested 1 second) and continuous short circuit protection. It operates over a temperature range of -40°C to +100°C and is suitable for commercial ITE and medical applications. The module is RoHS3 compliant and available in tube (27 pcs) or tape and reel (500 pcs) packaging.
| Qty | Low | High |
|---|---|---|
| 27+ | $11.03 | $11.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 24V, with a range of 21.6V to 26.4V (±10%).
It provides a 5V output at 200mA (1W).
-40°C to +100°C.
Yes, it is RoHS3 compliant as per datasheet.
It is available in a surface mount SMD package. Standard packaging: 27 pcs per tube or 500 pcs per reel.
Tested for 1 second: 3750 VDC; rated for 1 minute: 3000 VDC.
Typical efficiency is 80% at nominal input and full load.
