| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

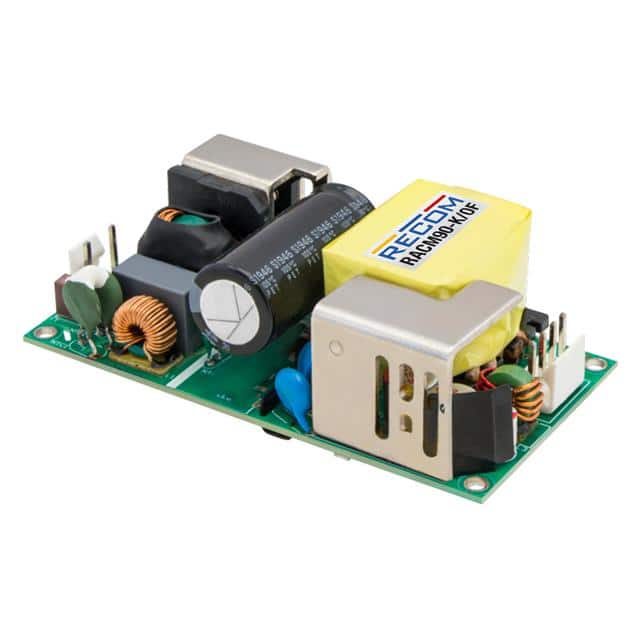

The RECOM Power RACM90-15SK/OF is a 90W AC/DC power supply designed for various applications including ITE (Commercial). It operates with a wide input voltage range of 85-264VAC and provides a regulated 15VDC output at 6A.
This converter features an open frame, chassis mount design, measuring 101.6mm x 50.8mm x 32.0mm. It offers an efficiency of 89% and operates across a broad temperature range from -40°C to +90°C, with derating applied at higher temperatures. The unit is certified for 4kV isolation voltage and meets various safety and EMC standards.
Key electrical specifications include a 47-63Hz input frequency range, a hold-up time of 70ms at 230VAC, and a start-up time of 150ms. It also includes features like PFC and is DC input capable. The power factor is 0.5 at 115VAC and 0.4 at 230VAC.
The nominal output voltage is 15 VDC.
The maximum output current is 6 A.
The power rating is 90 W.
The typical efficiency is 89%.
The operating temperature range is -40°C to +90°C (With Derating).
The input voltage range is 85-264 VAC.
It supports chassis mount.
