| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

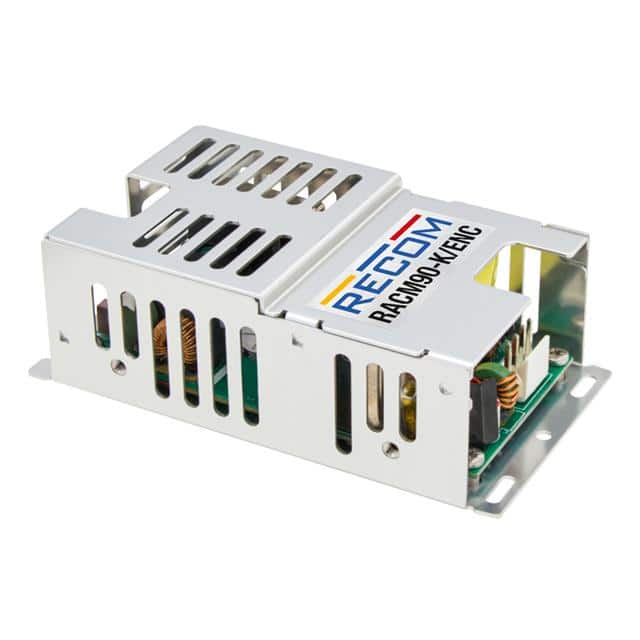

The Recom Power RACM90-12SK/ENC is a 90-watt AC/DC power supply from the Powerline series, designed for ITE (Commercial) applications. It features a regulated output of 12VDC with a current rating of 7.5A, providing a total output power of 90W.
This converter operates with a wide input voltage range of 85-264VAC and boasts an efficiency of 87%. The operating temperature range is -40°C to 90°C, with derating. It includes features such as baseplate cooling, DC input capability, Power Factor Correction (PFC), and universal input.
The unit is enclosed and designed for chassis mounting. Its dimensions are 118.3mm in length, 62.7mm in width, and 38.7mm in height. The RACM90-12SK/ENC also offers a 4kV isolation voltage and complies with various safety and EMC standards, including EN55032 Class B.
Key specifications include a 47-63Hz input frequency range, 12ms hold-up time at 115VAC, 150ms start-up time, and 25ms rise time. The no-load power consumption is 200mW, and it has a power factor of 0.5 at 115VAC.
85-264 VAC.
Chassis mount, enclosed package. Dimensions: 118.3mm x 62.7mm x 38.7mm.
-40°C to 90°C with derating.
12 VDC at 7.5 A.
87%.
4 kV.
200mW.
