| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

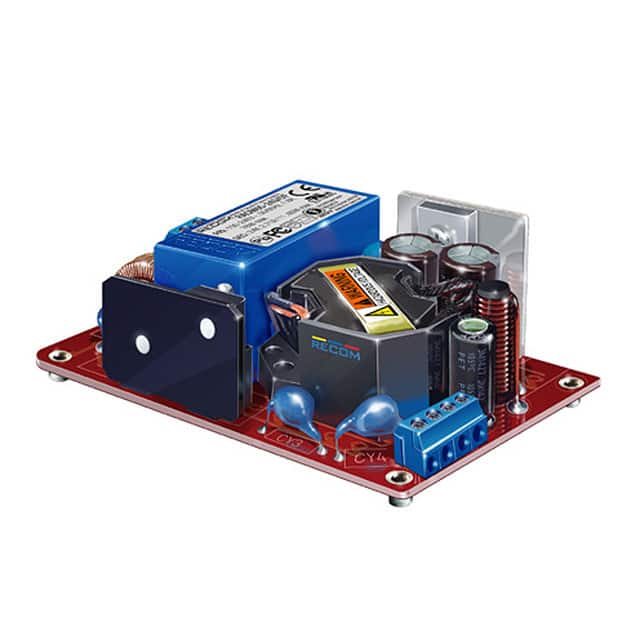

The RECOM Power RACM65-48S/OF is a 65 Watt AC/DC converter designed for medical applications. It features a compact 3" x 2" form factor with an open frame and chassis mount.
This converter operates with a wide universal input voltage range of 85-264VAC and provides a stable 48VDC output. It offers high efficiency up to 93% and features 2xMOPP/250VAC safety approval, making it suitable for demanding medical environments. The RACM65-48S/OF also boasts low leakage current (<75µA) and operates across a wide temperature range of -40°C to +85°C.
Key electrical specifications include a 4kVAC isolation voltage, adjustable output voltage trimming of ±10%, and a minimum load requirement of 0%. The unit is designed for reliable performance, with features like a built-in Class B EMI filter and a 5-year warranty. It is certified to medical safety standards such as IEC/ES/EN-60601-1 3rd Edition.
With its robust design and compliance certifications, the RACM65-48S/OF is well-suited for integration into medical devices and other applications requiring high reliability and safety.
The output voltage is 48VDC.
The power rating is 65W.
The input voltage range is 85-264VAC.
The operating temperature range is -40°C to +85°C.
The MOPP rating is 2MOPP.
The leakage current is less than 75µA.
It uses chassis mount.
