| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

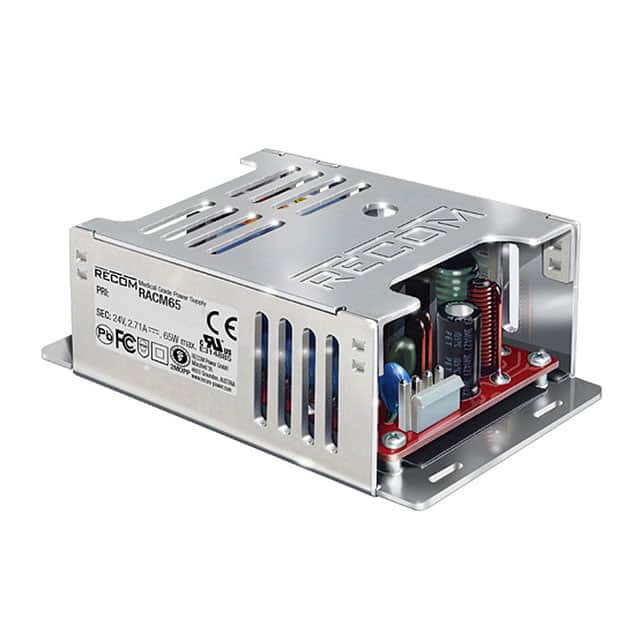

The Recom Power RACM65-05S is an AC/DC converter that delivers a nominal 5V output with a maximum output current of 10A, providing 65W of power. It accepts a wide input voltage range of 85-264 VAC (100-370 VDC) and operates at 50/60 Hz, with a maximum frequency of 440 Hz. The converter achieves a typical efficiency of 90% and offers 4kVAC isolation.
Output voltage regulation is tight, with ±0.2% tolerance over the entire input voltage range and ±0.5% over the entire load range. An on-board trimpot allows output voltage trimming of ±10%. The converter has a minimum load of 0%, a typical start-up time of 1 second, and a rise time of 20 ms. No-load power consumption is only 0.11W.
This converter is designed for a wide operating temperature range of -40°C to 85°C, making it suitable for demanding environments. The RACM65-05S is part of the RACM65 series from Recom Power, intended for off-board power supply applications.
The RACM65-05S provides a nominal output voltage of 5 VDC and a maximum output current of 10 A.
The input voltage range is 85-264 VAC (100-370 VDC).
The operating temperature range is -40°C to 85°C.
The typical efficiency is 90%.
The isolation voltage rating is 4 kVAC.
Yes, the output voltage can be trimmed by ±10% using an on-board trimpot.
