| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

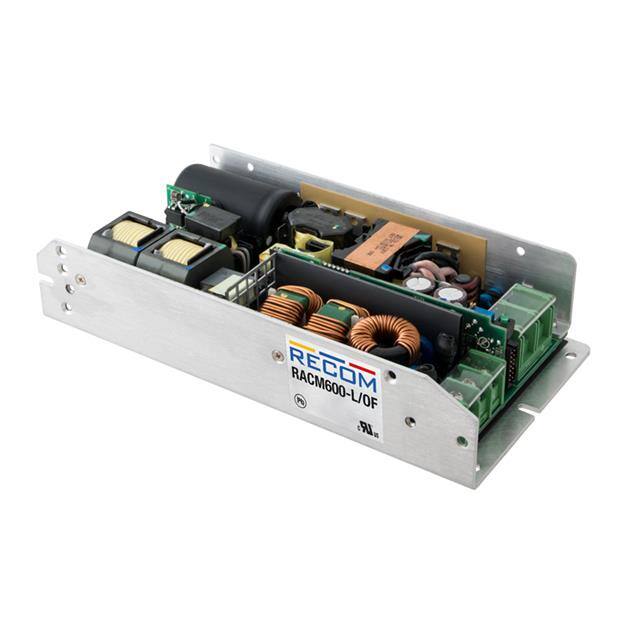

The Recom Power RACM600-24SL/OF is an open-frame AC/DC converter designed for industrial and automation applications. It provides a 24VDC output voltage with a maximum current of 25A, delivering up to 600W of peak power.
This converter operates with a universal input voltage range of 80-275VAC and boasts a high typical efficiency of 93%. Key features include adjustable output voltage, DC input capability, Power Factor Correction (PFC), PMBus™ interface, remote on/off, and remote sensing capabilities.
The unit is designed for chassis mounting and has dimensions of 196.8 x 101.6 x 40.6mm. It is suitable for applications requiring ITE (Commercial) approvals and operates within a temperature range of -20°C to 70°C. Safety approvals include CE, and it offers 4kV insulation voltage.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The RACM600-24SL/OF is ideal for various automation processes and energy applications.
The nominal output voltage is 24 VDC, with an adjustable range of 19.2-28.8 VDC.
The maximum output current is 25 A.
The input voltage range is 80-275 VAC.
The typical efficiency is 93% when tested at nominal input (230VAC) and full load at +25°C ambient.
The dimensions are 196.8 x 101.6 x 40.6mm (7.75 x 4 x 1.6 inch).
The operating temperature range is -20°C to 70°C.
Yes, it is RoHS3 Compliant.
