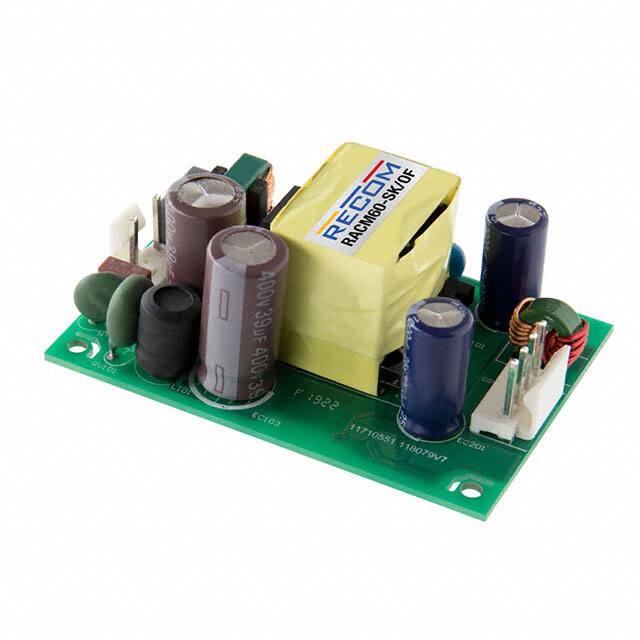

The RECOM Power RACM60-24SK/OF is a 60W AC/DC converter designed for industrial, household, and medical applications. It provides a nominal output voltage of 24VDC with a continuous output current of 2.5A, delivering up to 60W of power. The converter operates with a universal input voltage range of 80-264 VAC and boasts a typical efficiency of 90% at full load.
This open frame converter features a chassis mount type and measures 78.4mm x 53.0mm x 31.5mm. It is designed for extended thermal performance, operating from -40°C to +85°C with derating. Key features include 4kVAC isolation, a built-in Class B EMC filter, and compliance with medical safety standards like ANSI/AAMI ES60601-1 and EN 60601-1-2, as well as industrial standards IEC/EN62368-1 and IEC61558-1/-2-16.
Applications include household appliances, ITE (Commercial), and medical equipment. The RACM60-K series offers robust performance with features like over-voltage category III and 2MOPP medical certification.
The RACM60-24SK/OF provides a nominal 24VDC output at 2.5A.
The input voltage range is 100-240VAC.
The operating temperature range is -40°C to +85°C with derating.
The typical efficiency is 90% at nominal input (230VAC) and full load at +25°C ambient.
The input-to-output isolation voltage is 4kVAC for 1 minute.
The RACM60-24SK/OF is an open-frame converter designed for chassis mount.
