| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

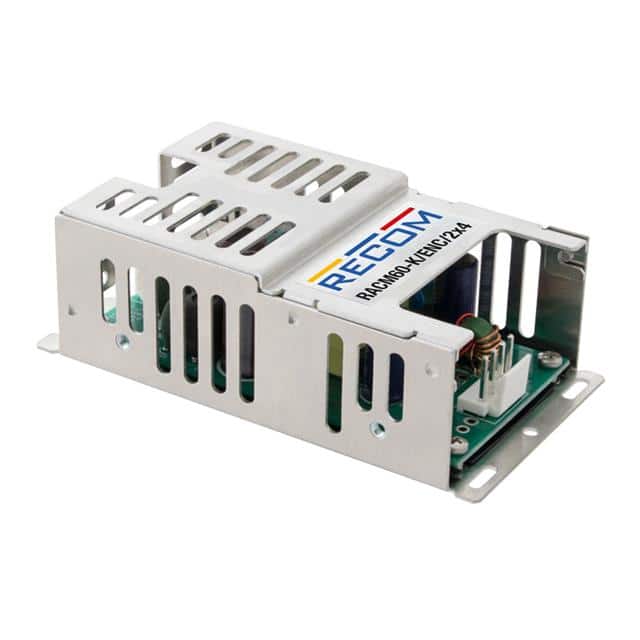

The Recom Power RACM60-12SK/ENC/2X4 is a versatile 60W AC/DC power supply designed for industrial, household, and medical applications. It delivers a stable 12VDC output with a nominal current of 5000mA, achieving a typical efficiency of 90% at full load.
This enclosed unit features a chassis mount design for easy integration into systems. It operates across a wide input voltage range of 80-264VAC and maintains functionality in demanding environments with an operating temperature range of -40°C to +85°C, with derating required at higher temperatures. The power supply is certified for medical applications (2MOPP) and meets Class B EMC standards, ensuring reliable performance.
Key features include a built-in Class B EMC filter, 4kVAC isolation, and compliance with multiple safety standards such as IEC/EN62368-1 and ANSI/AAMI ES60601-1. Its compact dimensions (118.3mm x 62.7mm x 38.7mm) make it suitable for space-constrained designs.
The nominal output voltage is 12VDC.
The maximum continuous output power is 60W.
The typical efficiency is 90% when tested at nominal input (230VAC) and full load at +25°C ambient.
The operating temperature range is -40°C to +85°C with derating.
It uses chassis mount.
It is certified for medical applications (2MOPP) and meets Class B EMC standards, with approvals including CB, CE, and cURus.
