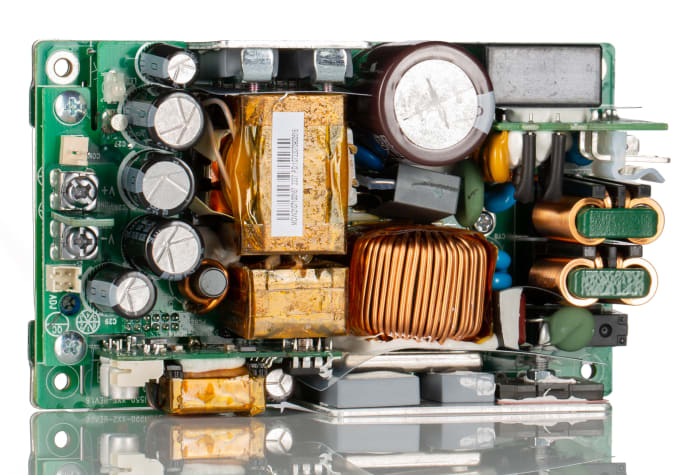

This Recom RACM550-24SG/OF is an open-frame AC/DC converter designed for high-power applications. It delivers a stable 24V DC output with a maximum current of 22.92A, providing a total power of 550W. The unit operates with a wide input voltage range from 80V AC to 264V AC, making it versatile for various power systems.
Featuring 93% efficiency, this converter minimizes energy loss as heat, contributing to a more efficient system. It is designed for chassis mounting and includes features such as adjustable output, baseplate cooling, and remote on/off and sense capabilities. The operating temperature range is -40°C to +70°C, suitable for challenging environments.
Compliance with standards like EN 55024 and EN 55032 Class B, along with cURus and CE approvals, ensures reliability and safety in commercial and medical applications. Its compact dimensions of 127mm x 76mm x 38mm facilitate integration into various equipment designs.
The output voltage is 24V DC.
It is a chassis mount open frame design.
The operating temperature range is -40°C to 70°C.
The efficiency is 93%.
The input voltage range is 80-264V AC.
The isolation voltage is 4kV AC.
It is suitable for household appliances, ITE (commercial), and medical applications.
