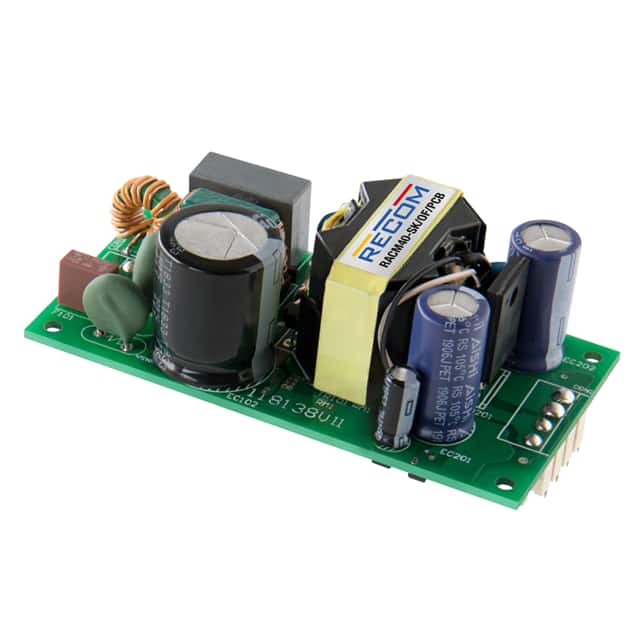

The RECOM Power RACM40-48SK/OF/PCB-T is a versatile AC/DC converter designed for industrial, household, and medical applications. It delivers 40 watts of output power with a nominal 48VDC output and a maximum continuous output current of 833mA.
This converter operates from a universal AC input range of 80-264VAC or 120-370VDC, offering flexibility in power source selection. It boasts a high efficiency of 90% and features a built-in Class B EMC filter. The operating temperature range is -40°C to +60°C ambient with natural convection, extending up to +85°C with derating or forced air cooling.
Key features include 4kVAC reinforced isolation, 2MOPP medical certification, and an operating altitude of up to 5000m for medical and ITE applications. The unit is certified to various safety standards including IEC/EN 62368-1, IEC61010, IEC61558-1/-2-16, and IEC/EN 60335-1.
Designed for PCB mounting, this open-frame converter has dimensions of 78.3mm x 40.6mm x 28.9mm. It is suitable for applications requiring reliable power conversion in space-limited environments.
The nominal output voltage is 48 VDC.
The continuous output power is 40 W.
The typical efficiency is 90%.
It operates from -40°C to 85°C with derating.
Yes, it is 2MOPP medical certified.
It has a 4kVAC reinforced isolation rating.
It is an open frame, 7-DIP Module with 6 leads, designed for through-hole mounting.
