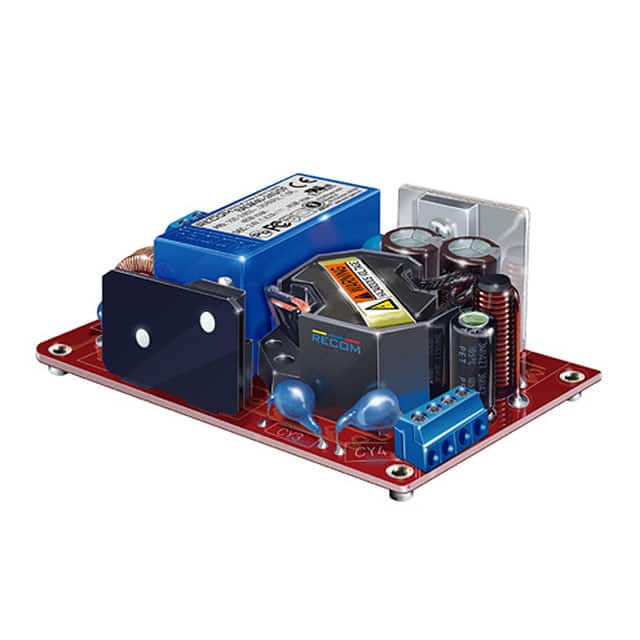

The Recom Power RACM40-12S/OF is an open frame AC/DC power supply designed for medical applications. It provides a 12V output with a maximum power of 40W and an efficiency of 92%. The converter features a wide input voltage range of 85-264VAC and operates reliably in ambient temperatures from -40°C to +85°C.
This model is suitable for chassis mounting and includes features such as adjustable output voltage and 4kVAC isolation. It also boasts low leakage current (<75µA) and a 5-year warranty, making it a robust choice for demanding environments.
The RACM40 series is certified to medical safety standards and includes a built-in Class B EMI filter. Its compact size and open frame construction facilitate integration into various systems.
The output voltage is 12VDC.
The maximum output power is 40W.
The operating temperature range is -40°C to 85°C.
The input voltage range is 85-264VAC.
Yes, the output voltage can be trimmed by ±10%.
The isolation voltage is 4kVAC.
The leakage current is less than 75µA.
