| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

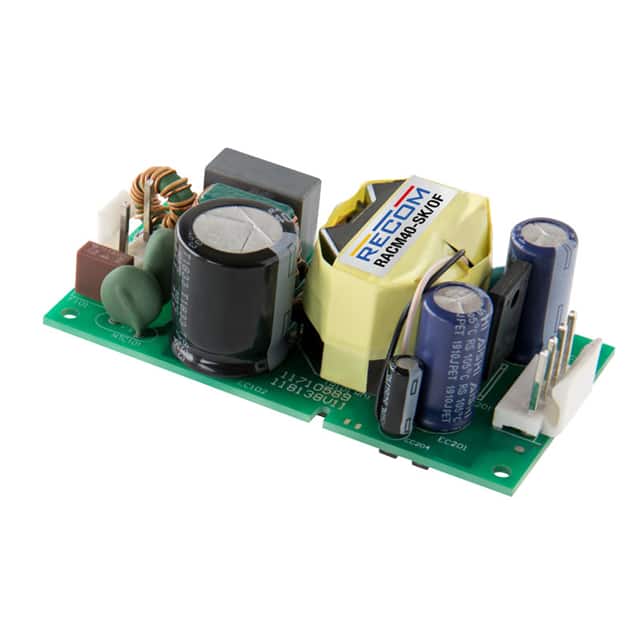

The RECOM Power RACM40-05SK/OF is a versatile AC/DC converter designed for industrial, household, and medical applications. This open frame module delivers 30W of continuous output power with a nominal output voltage of 5VDC and a nominal output current of 6000mA.
It features a wide input voltage range of 80-264 VAC and operates efficiently with a typical efficiency of 87%. The converter is built for demanding environments, offering an operating temperature range from -40°C to +85°C with derating. Its compact dimensions (78.3mm x 40.6mm x 25.5mm) and chassis mount type make it suitable for space-constrained designs.
Safety and reliability are paramount, with 4kVAC isolation and certifications including CE, cURus, and CSA. The unit also includes a built-in Class B EMC filter and is designed for medical applications with 2MOPP certification and an operating altitude of up to 5000m. A 3-year warranty underscores its robust construction.
The nominal output voltage is 5 VDC.
The continuous output power is 30W.
The operating input voltage range is 80-264 VAC.
The operating temperature range is -40°C to 85°C with derating.
It supports chassis mount.
