| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

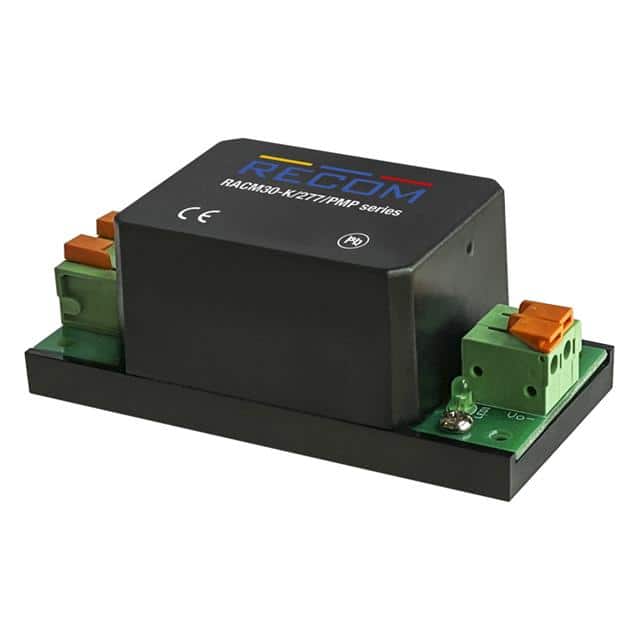

The Recom Power RACM30-15SK/277/PMP is a 30W AC/DC converter from the RACM30-K/277 series, also known as MEDLINE. It operates with a universal input voltage range of 85 to 305 VAC, providing a stable 15VDC output at a maximum current of 2A. This converter boasts a typical efficiency of 90% and is designed for continuous operation across a wide temperature range of -40°C to 90°C with derating.
With a compact surface mount package measuring 84.7mm x 40.0mm x 33.0mm, it is suitable for space-constrained designs. The unit complies with various safety standards including EN-60335-1, EN-60601-1, EN-61010-1, and EN-62368-1, and carries approval agency certifications such as CB, CE, cURus, EAC, and UKCA. Its applications span household appliances, ITE (Commercial), and medical equipment.
The RACM30-15SK/277/PMP is rated for Over Voltage Category III (OVC III) up to 5000m altitude and meets LPS (Limited Power Source) requirements. It also meets EN55032 Class B EMI limits in PELV configuration, simplifying system integration without the need for additional external filtering circuitry. The converter offers a 3-year warranty.
The output voltage is 15VDC.
The maximum output current is 2A.
The input voltage range is 85 to 305 VAC.
The operating temperature range is -40°C to 90°C with derating.
The dimensions are 84.7mm x 40.0mm x 33.0mm.
It complies with 60335-1, 60601-1, 61010-1, and 62368-1 standards.
Approval agencies include CB, CE, cURus, EAC, and UKCA.
