| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

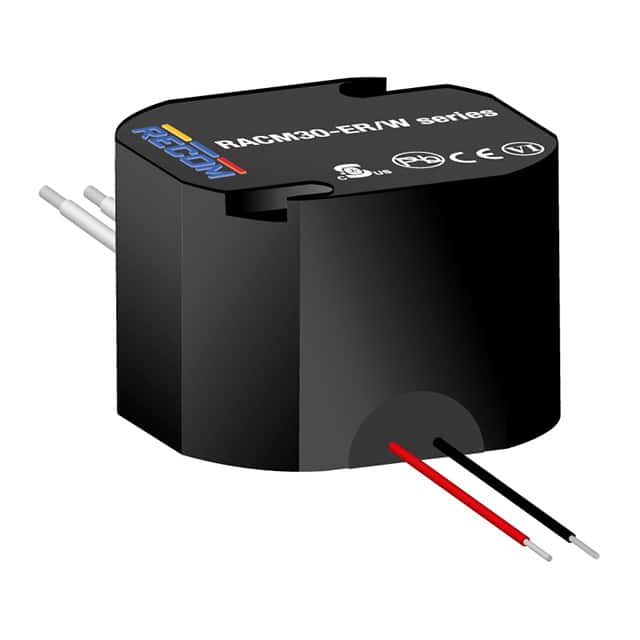

The RECOM Power RACM30-12SER/W is a 30 Watt AC/DC converter module designed for reliable power conversion. It operates with a wide input voltage range of 90-264 VAC and provides a stable 12VDC output at 2.5A.
This converter boasts an efficiency of 88% and is built with IP68 waterproof encapsulation, making it suitable for demanding environments. It is certified for household, medical, and ITE applications, including compliance with standards like EN-60335-1 and IEC/EN60601-1.
The module is designed for chassis mounting and operates within an ambient temperature range of -20°C to +70°C. Its compact dimensions (53.0mm x 51.0mm x 34.0mm) and rugged construction ensure long life and dependable performance in sanitary, healthcare, smart building, and automation applications.
The output voltage is 12 VDC.
The maximum output current is 2.5 A.
The power rating is 30W.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to +70°C with derating.
Applications include Household Appliances, ITE (Commercial), and Medical.
Yes, it features IP68 waterproof encapsulation.
