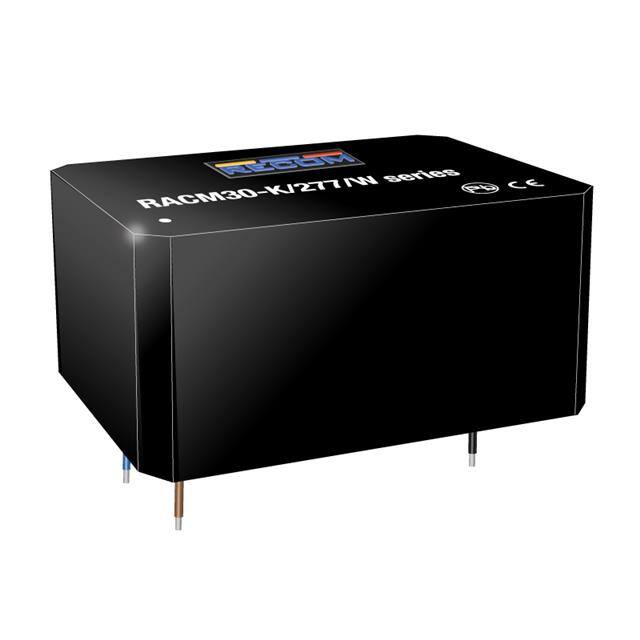

The Recom Power RACM30-05SK/277/W is a 30W AC/DC converter from the RACM30-K/277 series, designed for universal input from 85 to 305 VAC. This enclosed module provides a stable 5VDC output at up to 6A, with a typical efficiency of 86% at full load. It operates across a wide temperature range of -40°C to +90°C with derating.
This converter meets safety standards including EN-60335-1, EN-60601-1, EN-61010-1, and EN-62368-1, making it suitable for demanding applications in household appliances, ITE (commercial), and medical equipment. It is certified by CB, CE, cURus, EAC, and UKCA.
The module features a compact 5-DIP package with through-hole mounting. Its dimensions are 52.5mm x 40.0mm x 25.5mm. The converter is designed to meet EMI Class B limits with minimal external circuitry, easing system integration.
85 to 305 VAC (also 120 to 431 VDC).
5-DIP module with 4 leads, through hole mounting.
-40°C to +60°C at full load, derated to 90°C.
5 VDC nominal.
6000 mA (6 A).
30 W.
60335-1, 60601-1, 61010-1, and 62368-1.
