| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

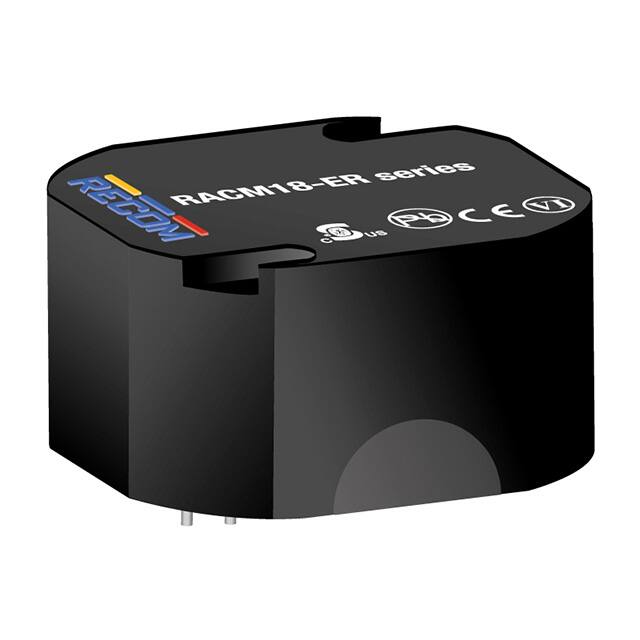

The RECOM Power RACM18-24SER is a highly reliable AC/DC power conversion module from the RACM18-ER series. It offers an 18W output power with a nominal voltage of 24VDC and accepts a universal input voltage range of 90-264 VAC.
Designed for demanding environments, this converter features IP68 waterproof encapsulation, allowing it to withstand harsh operating conditions. It is certified for operation up to 5000m altitude and operates within a temperature range of -20°C to +80°C. The module is built to power medical healthcare, household, sanitary, smart building, and automation process appliances.
For easy integration, the RACM18-24SER is certified to medical, household, and ITE safety standards. It is designed to pass class B limits without external components. Key electrical specifications include an efficiency of up to 86%, output accuracy of ±3.0%, line regulation of ±1.0%, and load regulation of ±1.0%.
The module is mounted via Through Hole and comes in a 4-DIP Module package. Its features include Class II installations, no external components necessary, and Energy Efficiency Level VI compliance.
The RACM18-24SER has a nominal output voltage of 24 VDC.
The maximum output current for the RACM18-24SER is 0.75A.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 80°C, with derating.
The RACM18-24SER is in a 4-DIP Module package.
It is mounted using the Through Hole method.
