| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

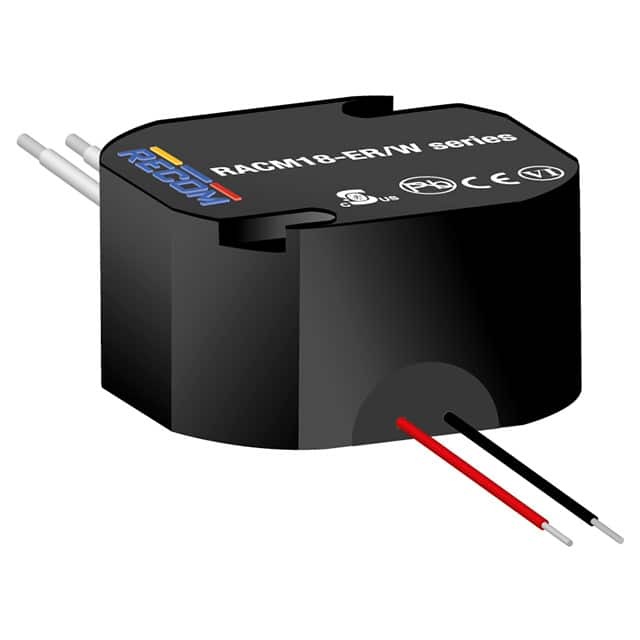

The RECOM Power RACM18-05SER/W is a highly reliable AC/DC power conversion module designed for various applications. It features a potted IP68 certified, waterproof encapsulation suitable for flush mount wall installations.
This module operates with a universal input voltage range of 90-264 VAC and delivers a stable 5VDC output at 2.5A, providing up to 13W of power. It boasts an efficiency of 81% and is certified for household, medical, and ITE safety standards, including 2MOPP.
The RACM18-05SER/W is built for rugged use, with a wide operating temperature range from -20°C to +80°C (with derating). Its compact dimensions (53.0mm x 51.0mm x 25.0mm) and chassis mount type make it suitable for integration into sanitary, healthcare, smart building, and automation systems. It is designed for ready-to-connect operation without external components.
Key specifications include line and load regulation of ±1.0% max., output accuracy of ±3.0% max., and a transient response of ±3.0% max. The module also meets Energy Efficiency Level VI standards.
The output voltage is 5 VDC.
The maximum output current is 2.5 A.
The power rating is 13W.
The input voltage range is 90-264 VAC.
The operating temperature range is -20°C to 80°C (With Derating).
Applications include Household Appliances, ITE (Commercial), and Medical.
Yes, it features IP68 waterproof encapsulation.
